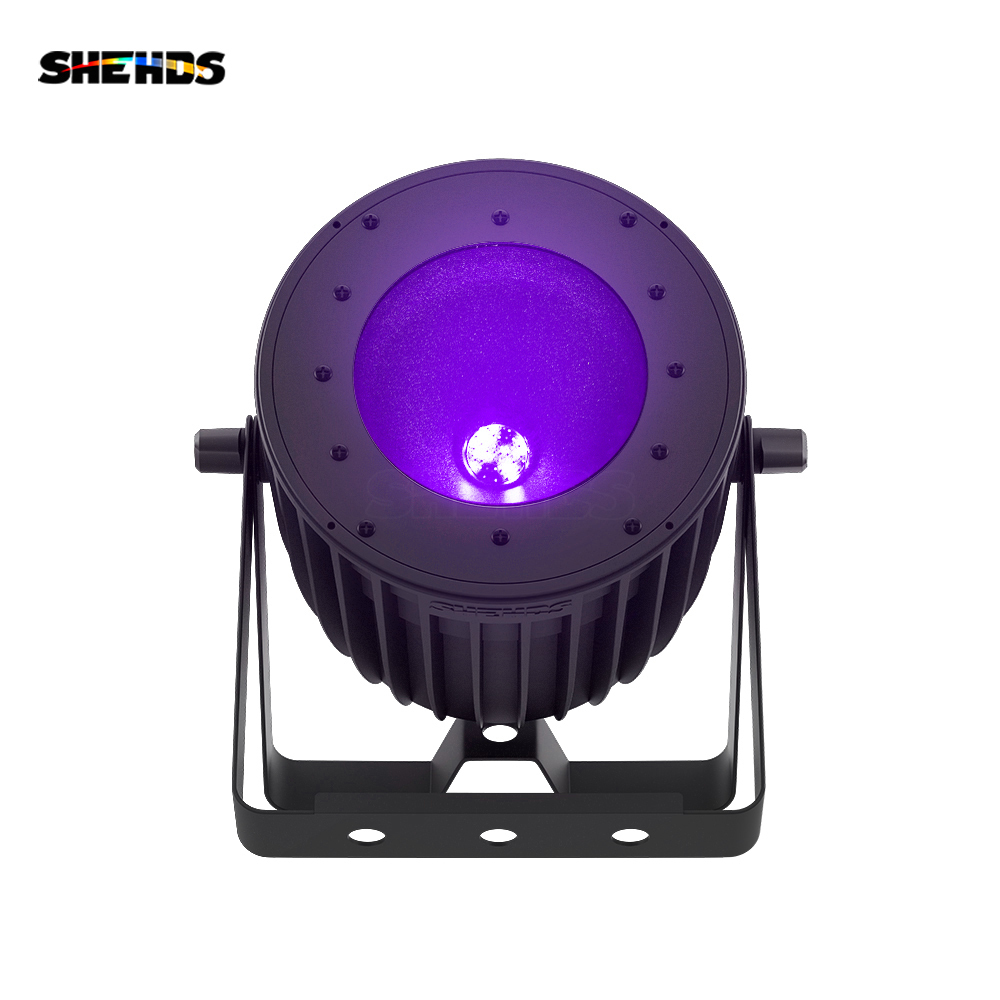

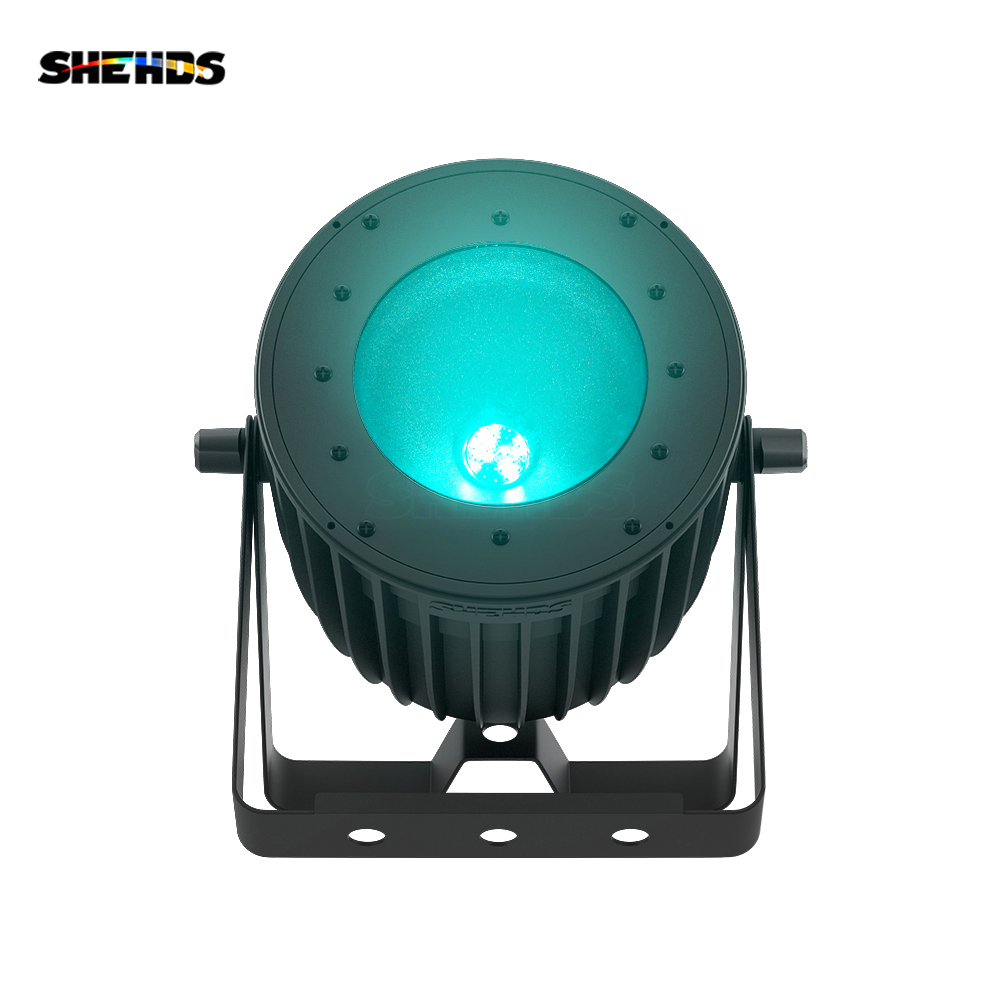

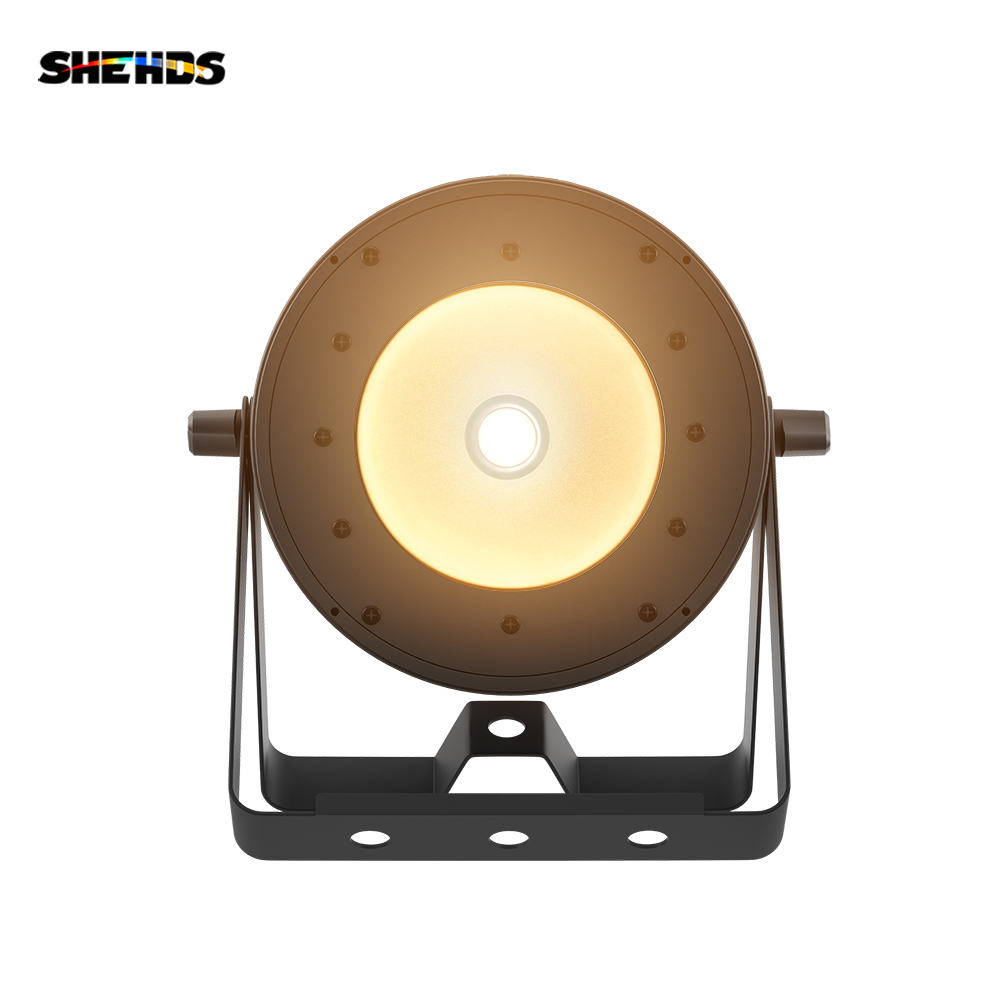

LED 200W RGBWA UV 6in1 COB Light
The light source consists of 200W COB LEDs,
Linear adjustable color from RGBWA UV creates the most realistic stage scene environment,
creates a strong visual impact for the performance.
Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
|
Light source parameters
|
|
Dimmer:
|
0-100% 16Bit linear
|
|
Light source:
|
200W RGBWA UV 6in1 COB
|
|
Beam Lux:
|
260 Lux / 10m
|
|
Beam angle:
|
69°
|
|
Strobe:
|
Flash rate 0-25Hz
|
|
Security System
|
|
Safety Item
|
Overcurrentand voltage protection
|
|
Degree Of Protection
|
IP20
|
|
Operating Temperature
|
-20℃~45℃
|
|
Interface And Control System
|
|
Control Interface
|
DMX In/Out
|
|
DMX Channel
|
6/10 CH
|
|
Power Interface
|
Neutrik PowerCon
|
|
Cooling System
|
|
Cooling Method
|
Passive heat dissipation
|
|
Power Consumption
|
|
Working Power
|
100-240V， AC 50/60Hz
|
|
Physical Parameters
|
|
Material:
|
Die cast aluminum casing
|
|

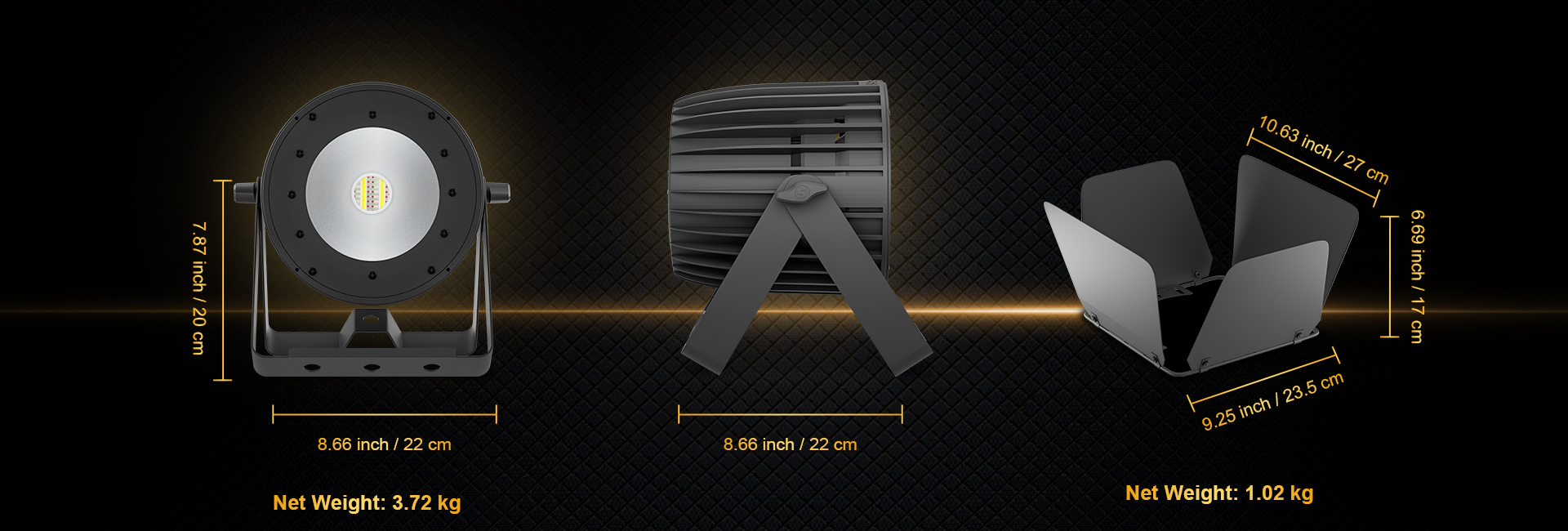

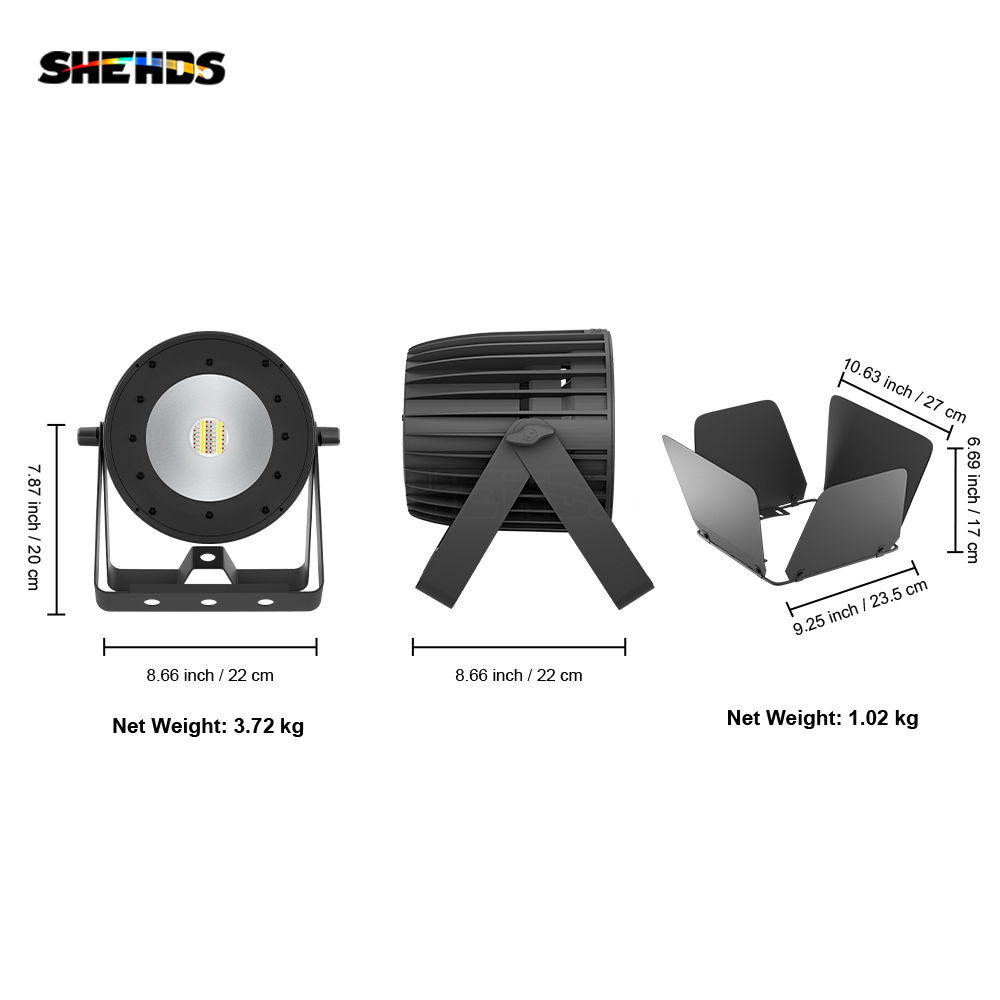

Product Size
|
22x22x22 cm / 8.66x8.66x8.66 inch
|
|
Product Weight
|
3.72 kg
|
|
Package Size
|
26x26x37 cm / 10.23x10.23x14.5 inch
|
|
Package Weight
|
4.62 kg
|

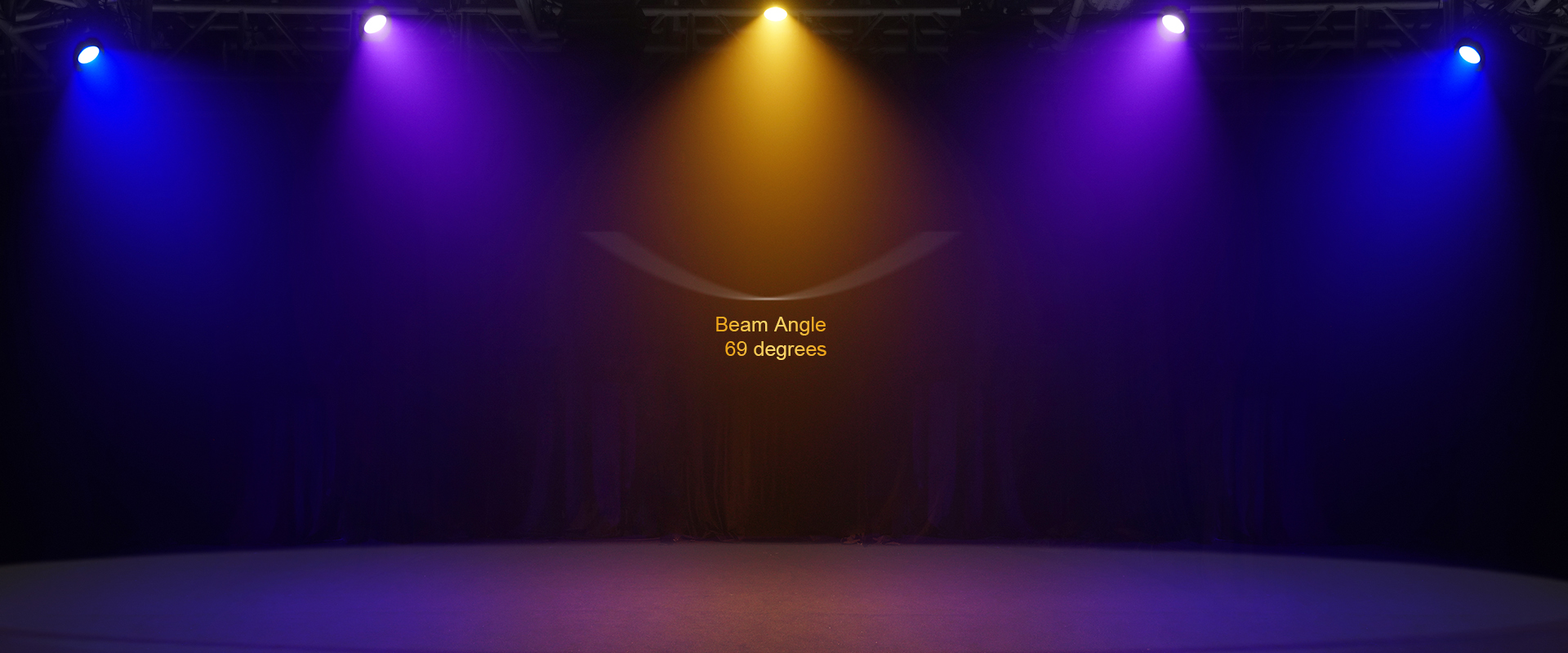

Beam Angle
Max 69°

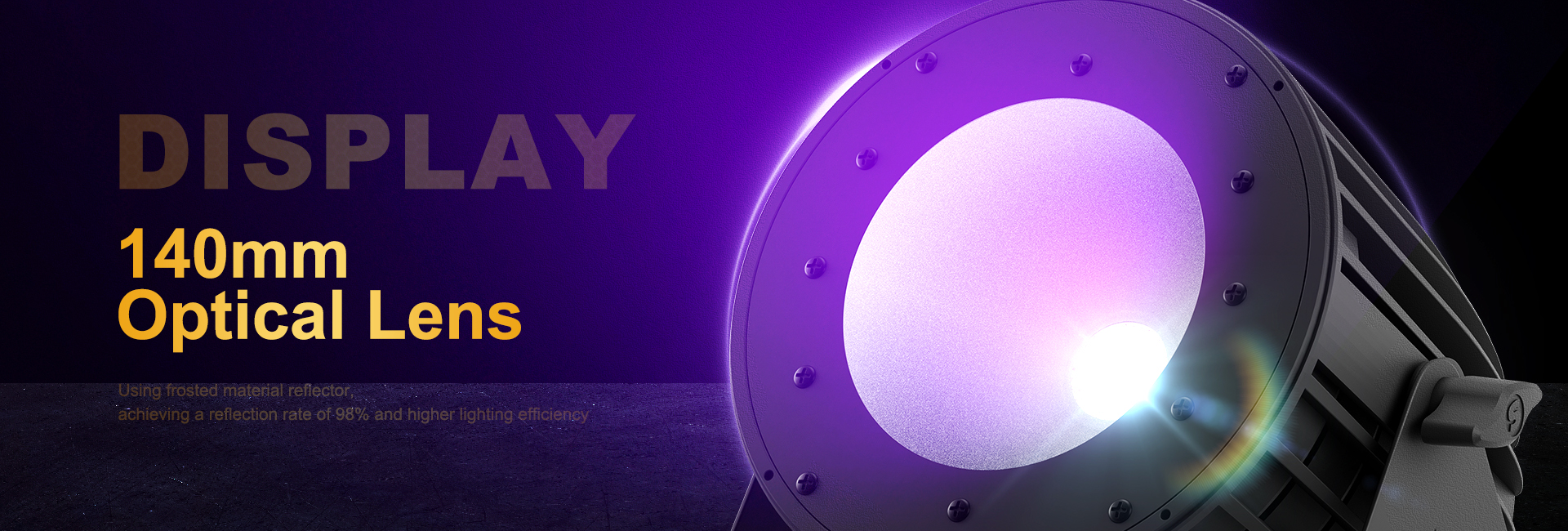

Optical Lens Display
Using frosted material reflector, achieving a reflection rate of 98% and higher lighting efficiency
More uniform color mixing effect
Integrating Powerful Beam
And Wash Functions
69 ° ultra wide lighting range,
And 0-100% smooth dimming function,
It can generate various dynamic psychedelic lighting effects,
Fully adapt to the application needs of different stages.
Beam Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.

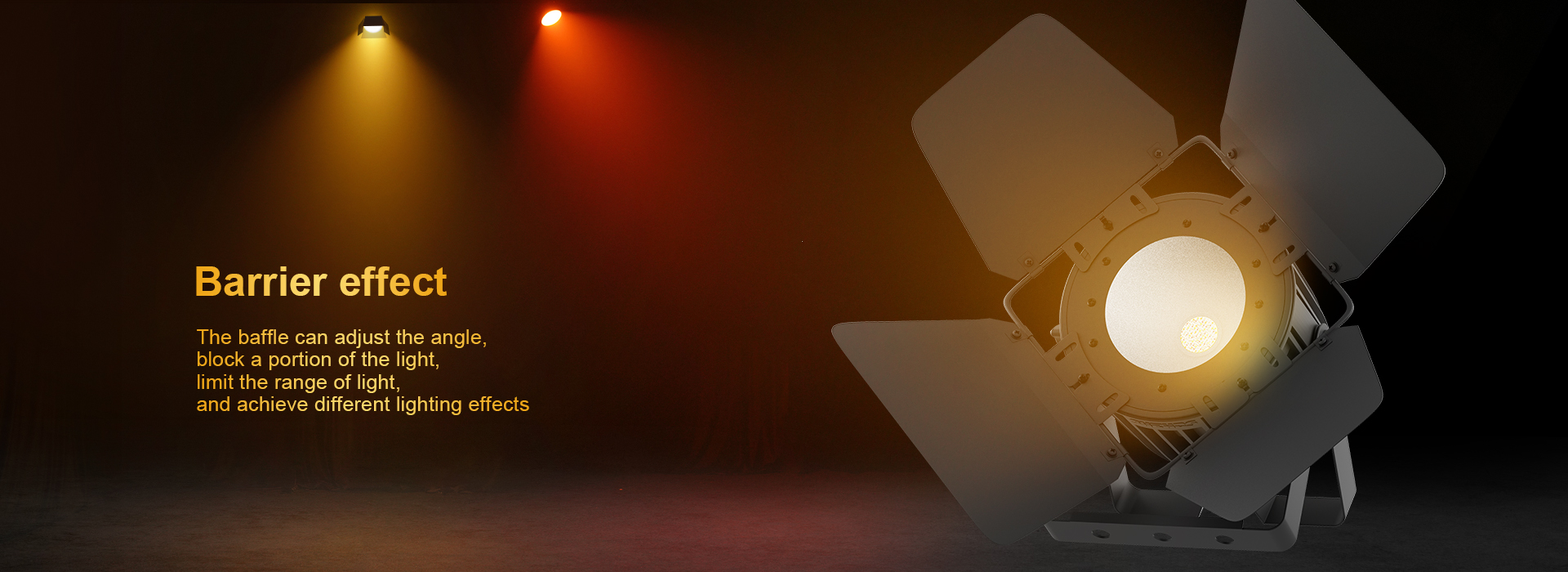

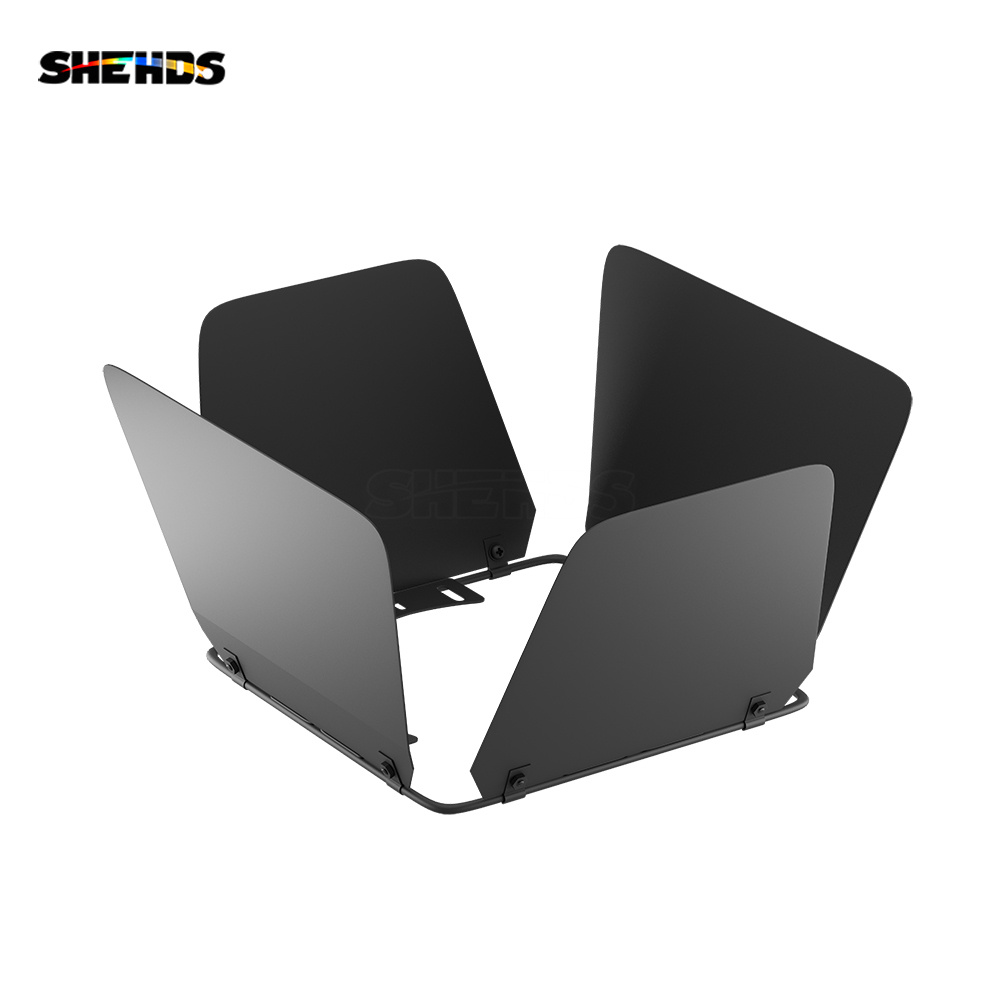

Light Barrier
Adjust the lighting and shadow effects on the stage to create different atmospheres and visual effects.
Highlight the key areas or characters on the stage,
making the audience pay more attention to these areas or characters,
and enhancing the visual effect of the stage.

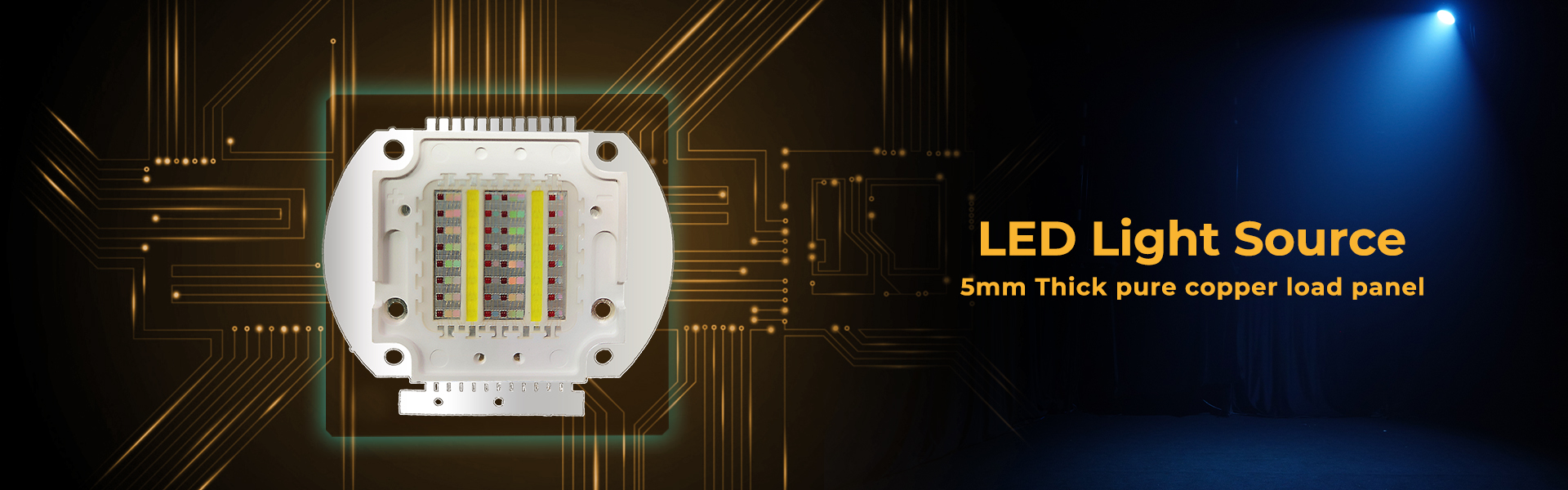

LED Light Source
5mm Thick pure copper load panel
LED light sources have a wide range of color temperature adjustment,
which can maintain stable color performance at different color temperatures,
thus adapting to different performance environments and audience needs.

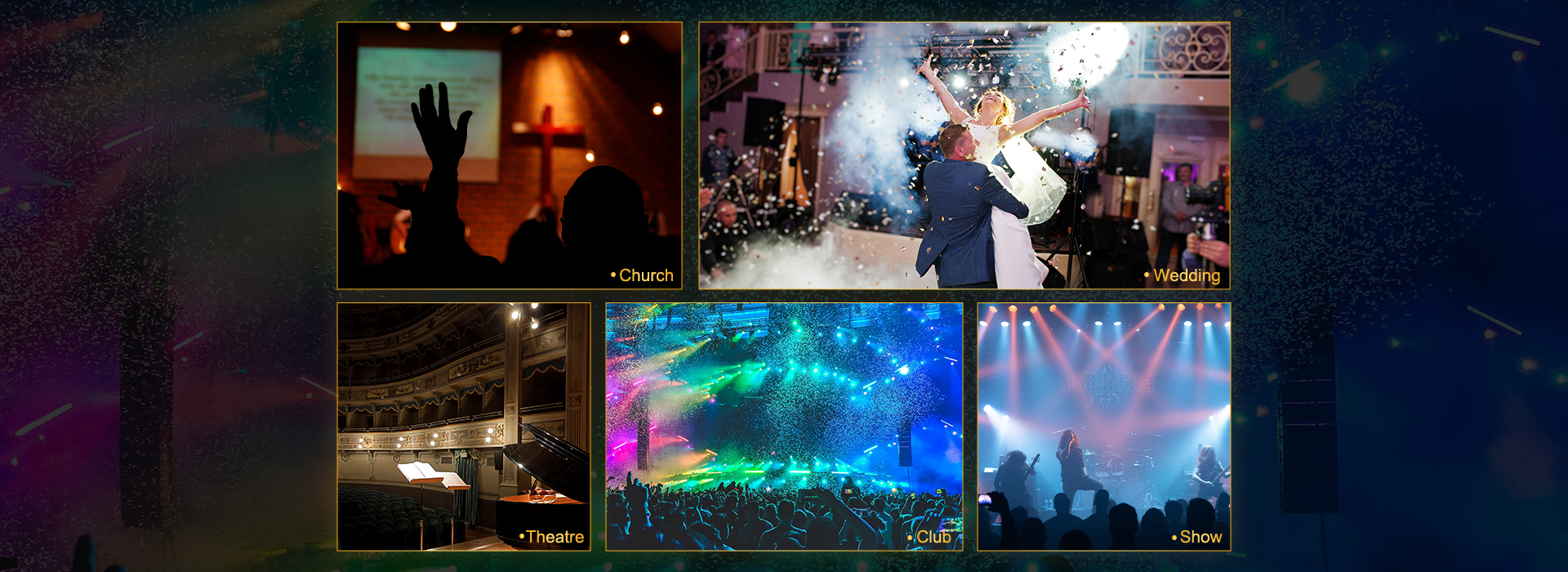

Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.

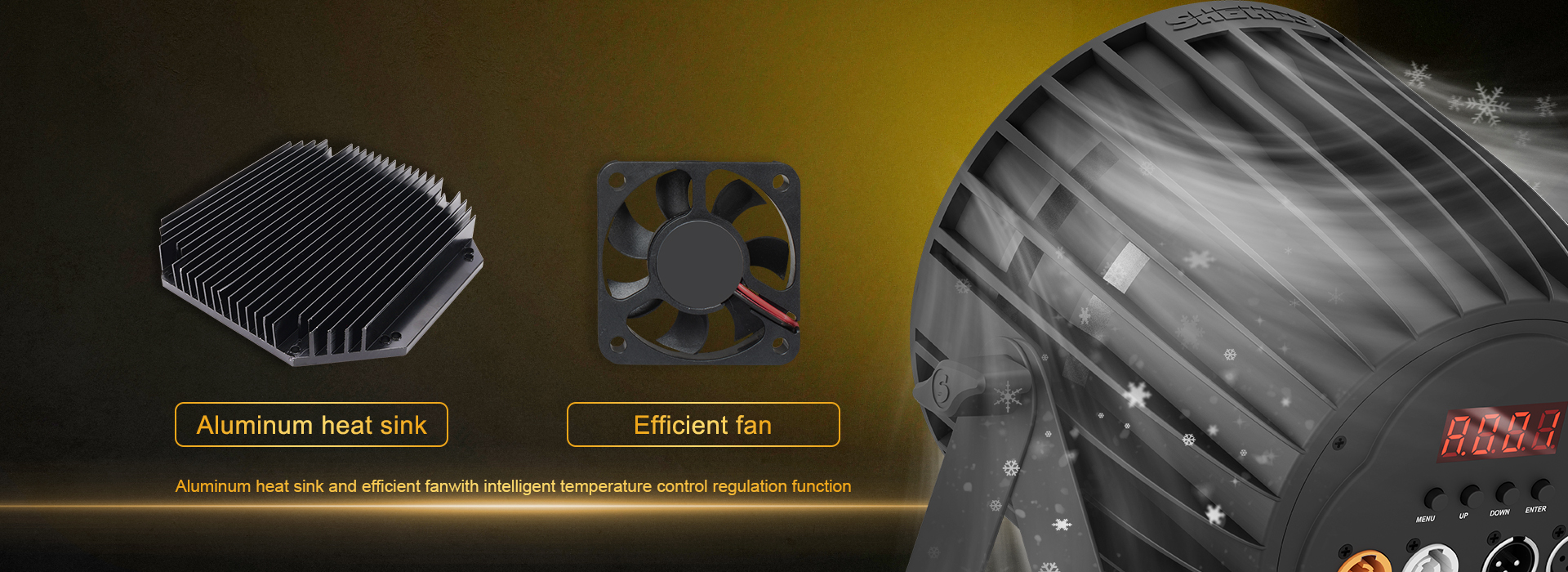

Split Heat Dissipation
Newly upgraded appearance, aluminum casing
aluminum shell, high strength, low density, lightweight, convenient to carry;
good corrosion resistance and less prone to rusting;
good heat dissipation and excellent thermal conductivity.

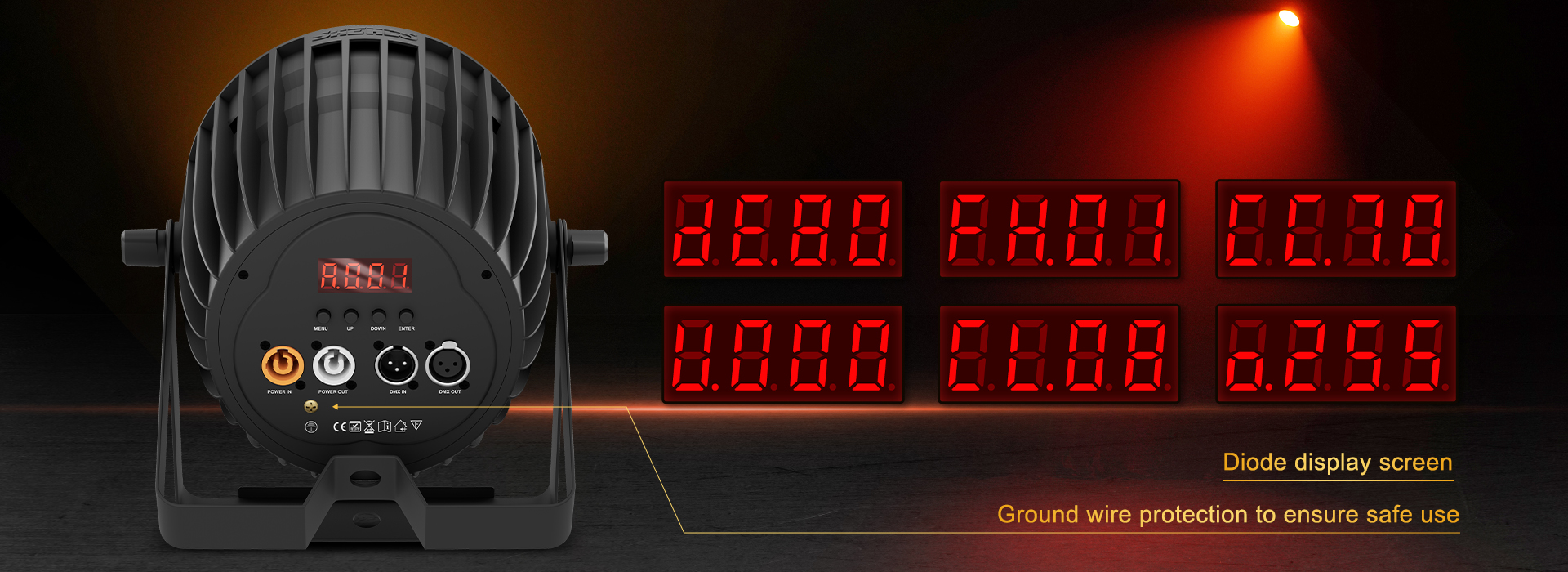

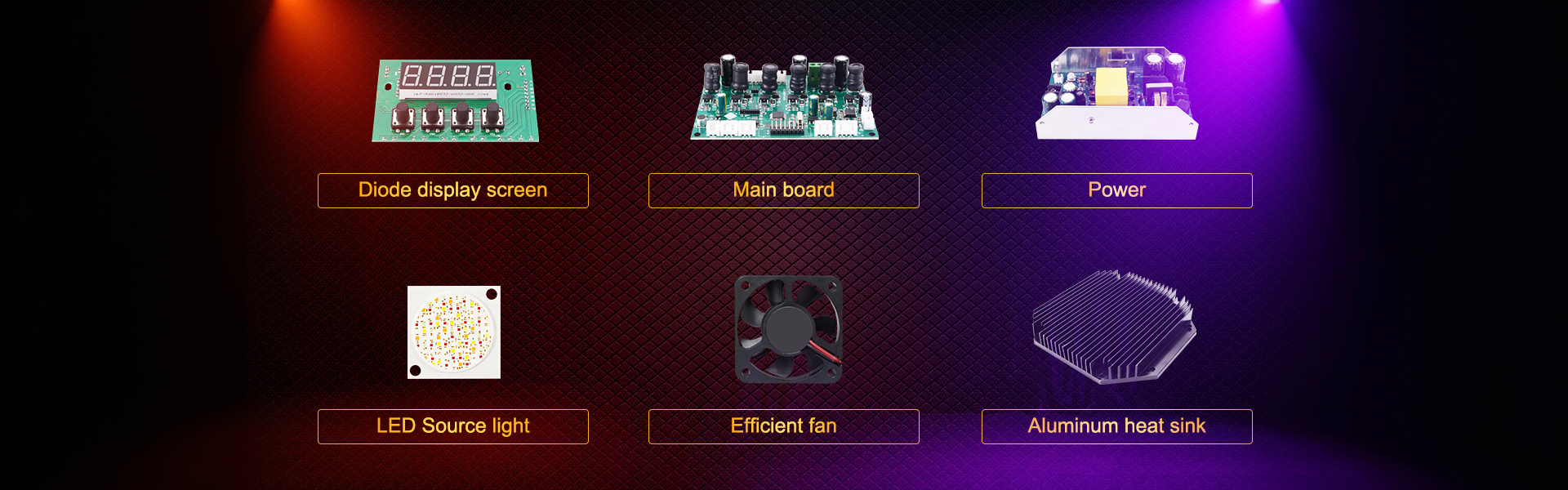

Introduction To Panel Functions
Diode display screen
Built in adjustable Sound Mode sensitivity value
New temperature control protection function added
New real-time temperature feedback function added

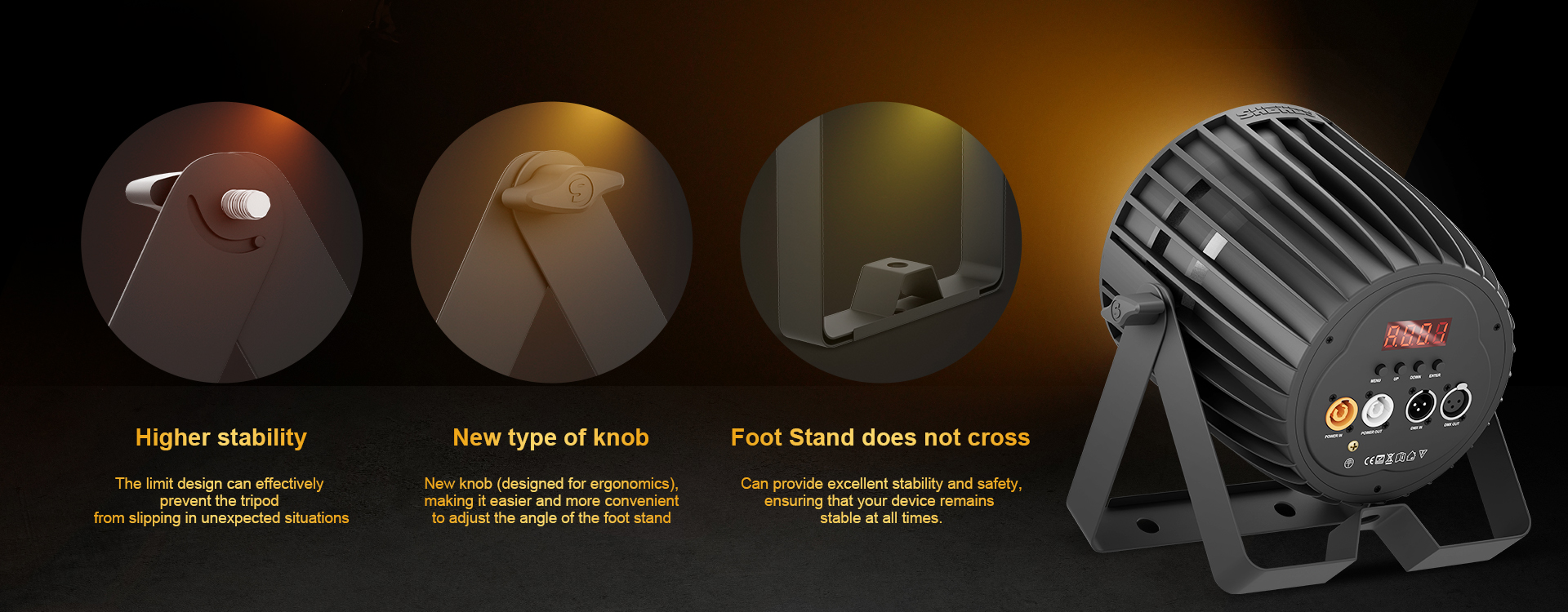

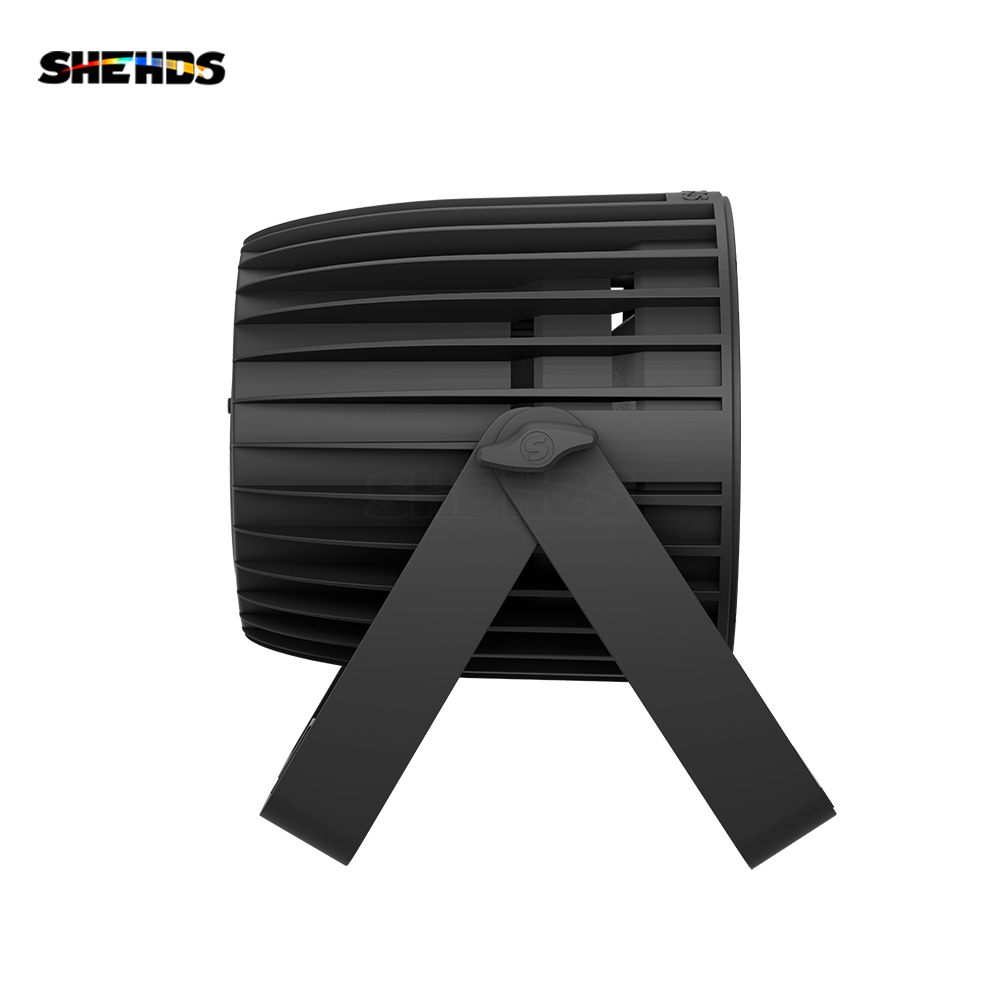

Foot Stand And Knob
Our tripods can provide excellent stability and safety.
The limit design can effectively prevent the tripod from slipping in unexpected situations,
ensuring that your device remains stable at all times.

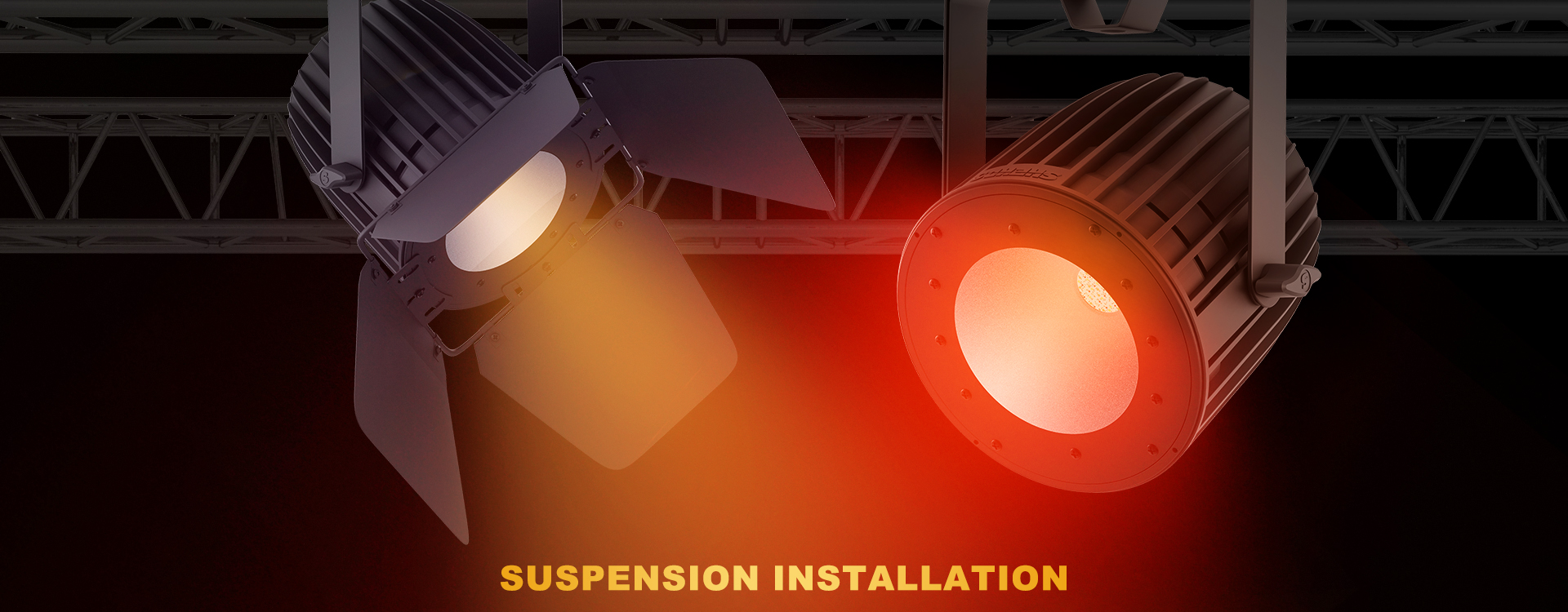

Suspension Installation Structure
Inverted installation
Carefully Select Excellent Accessories

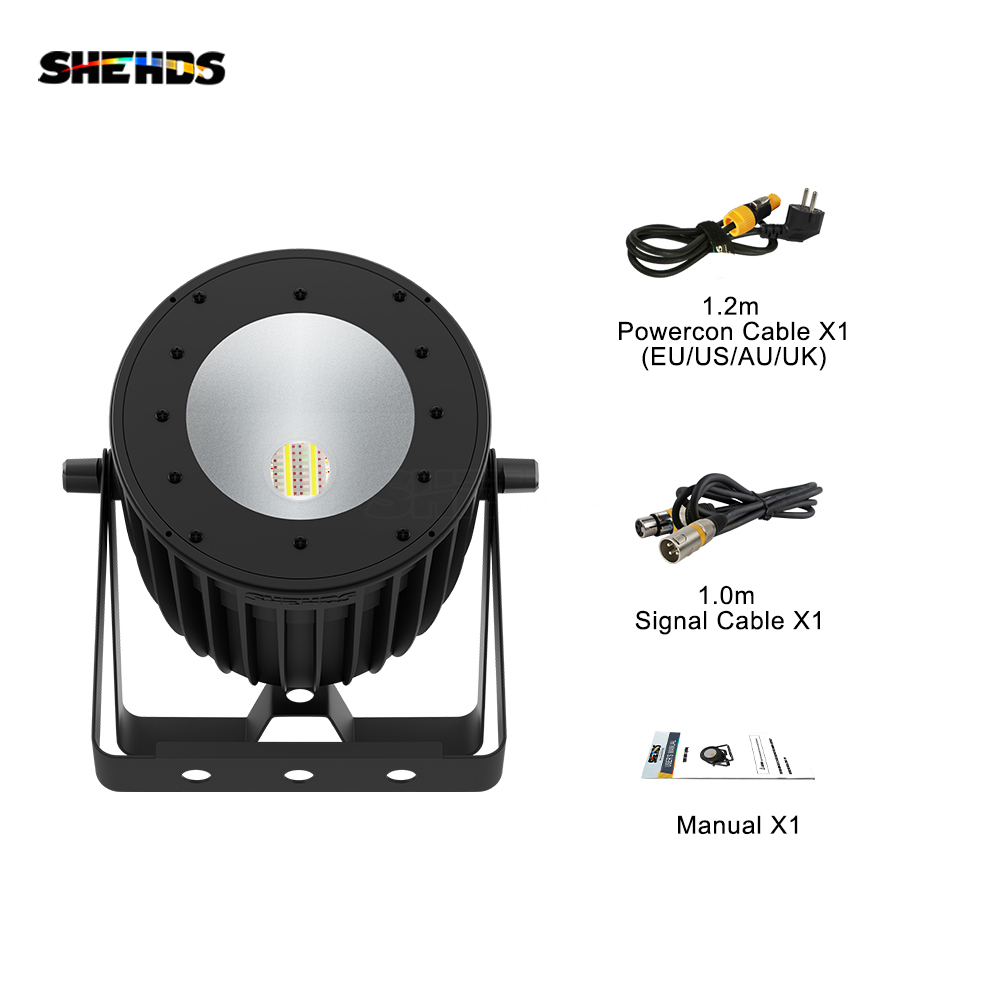

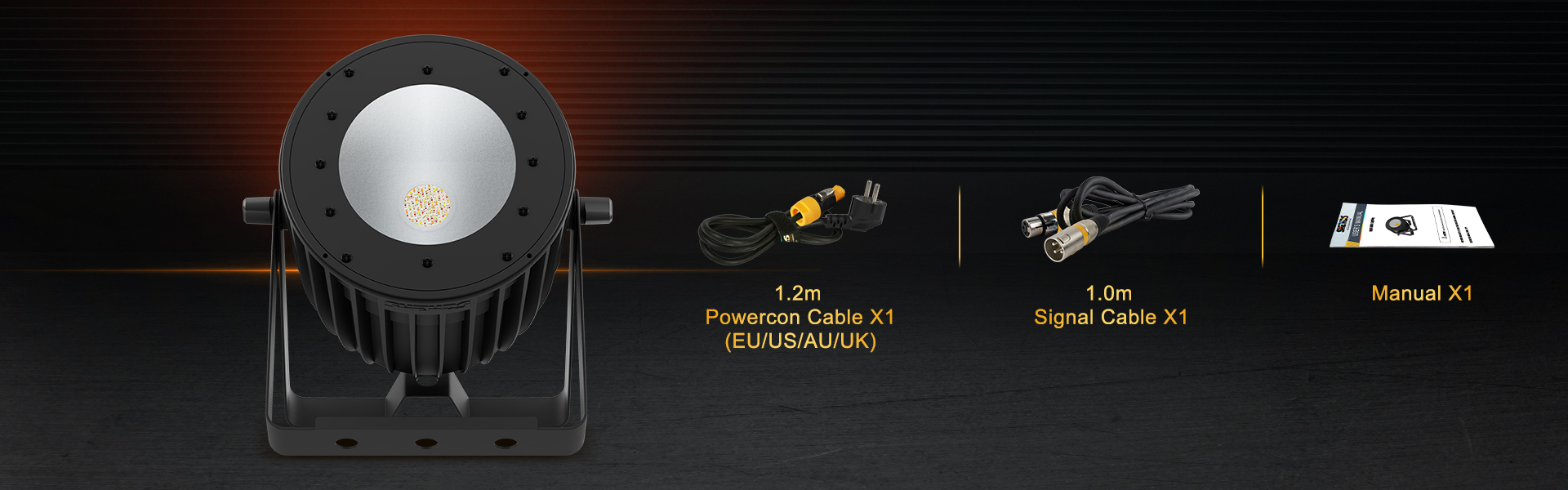

Packing List
Each process undergoes strict verification
Every part is carefully selected

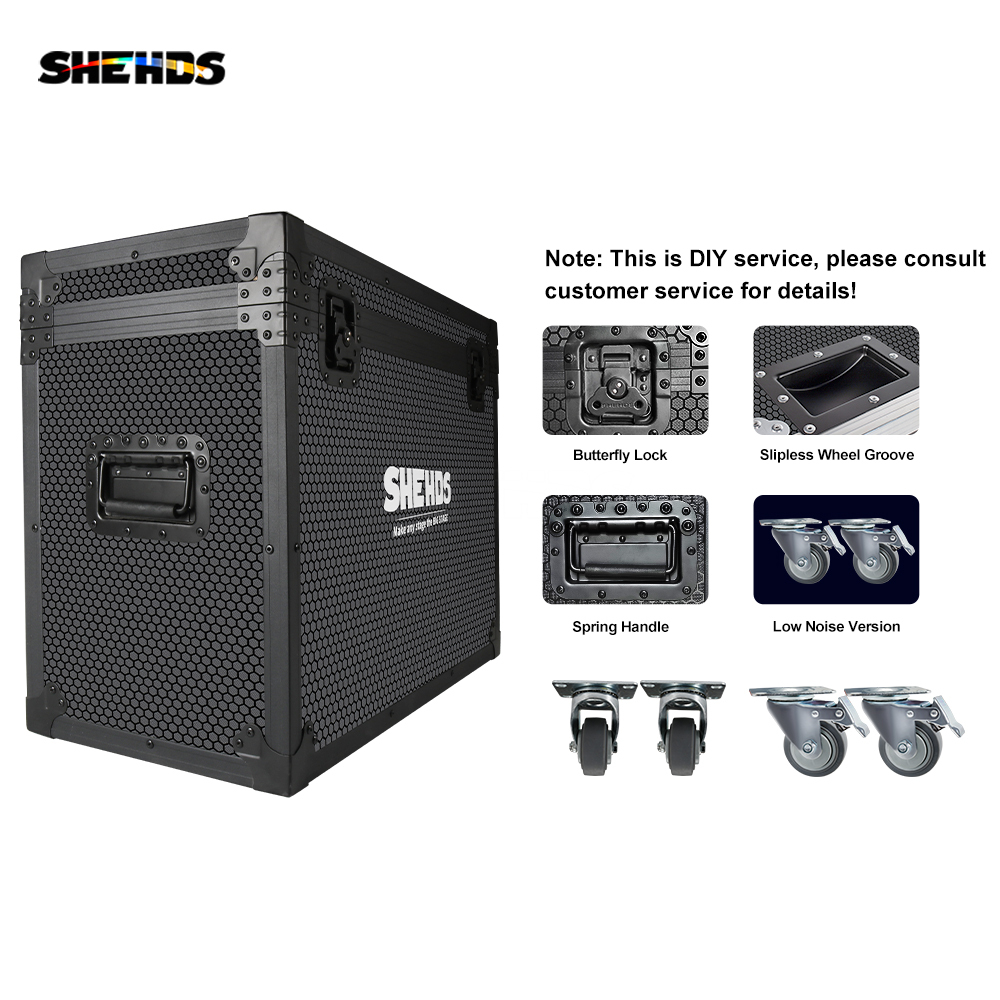

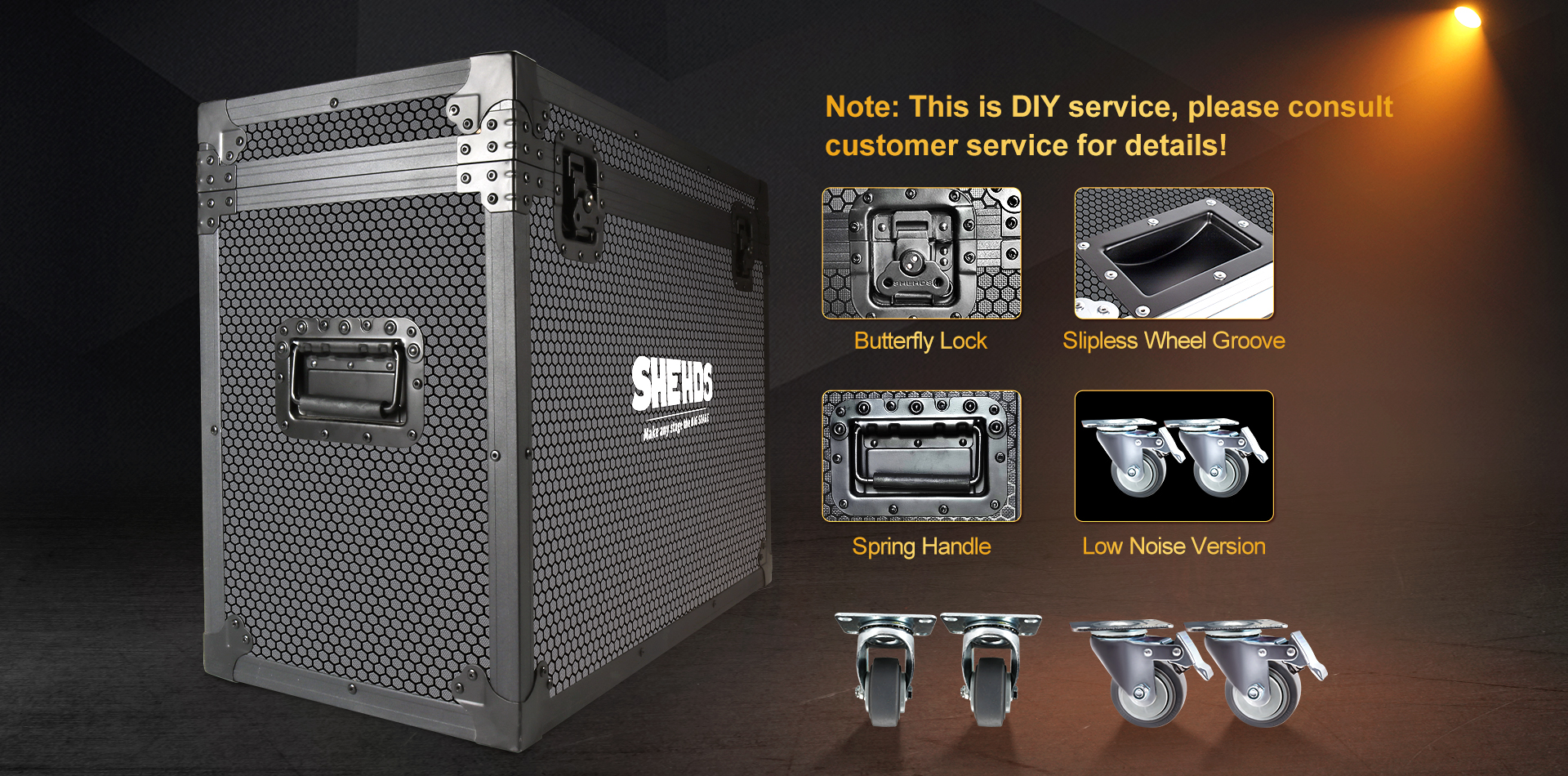

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!

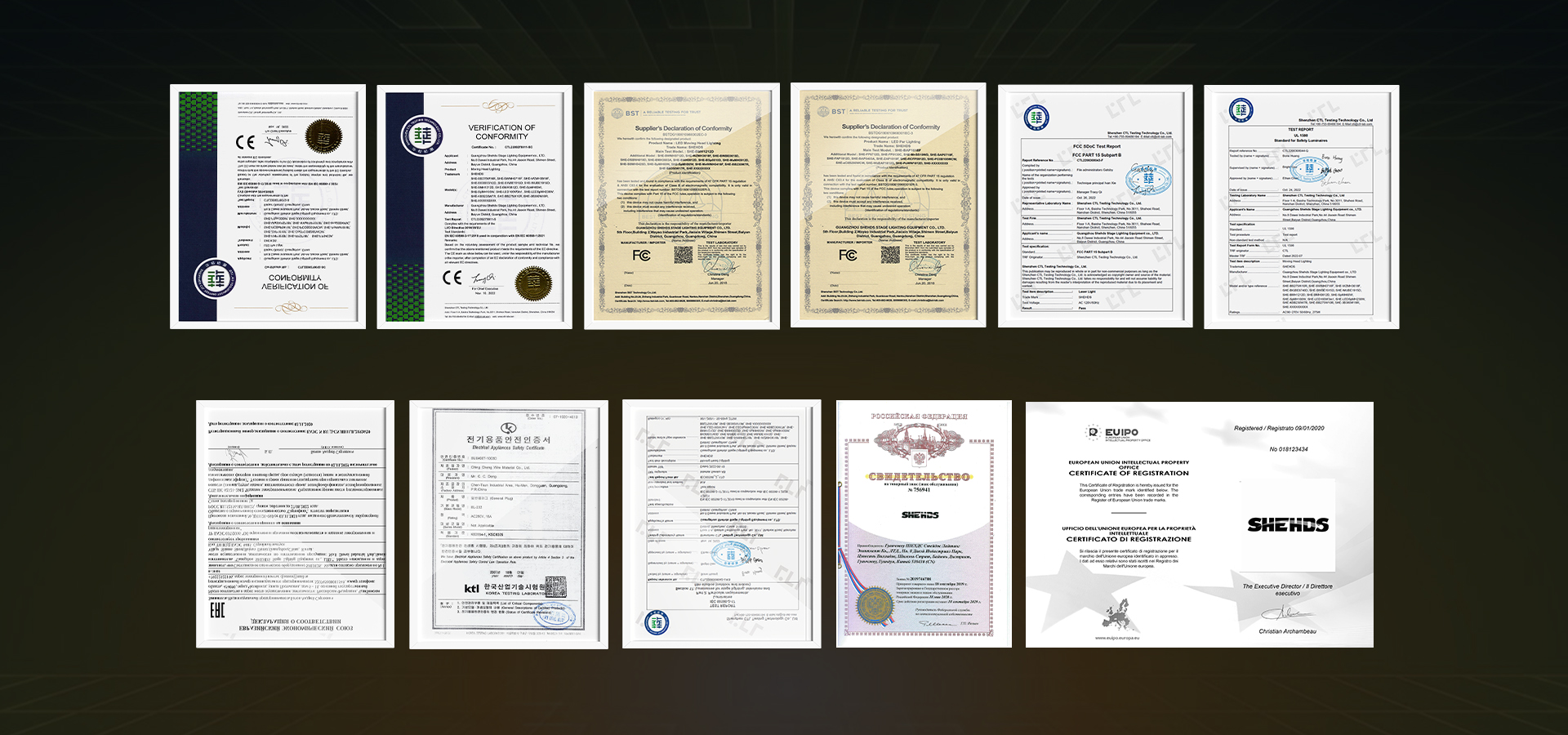

Qualification Certificate
International organizations Authority certification
