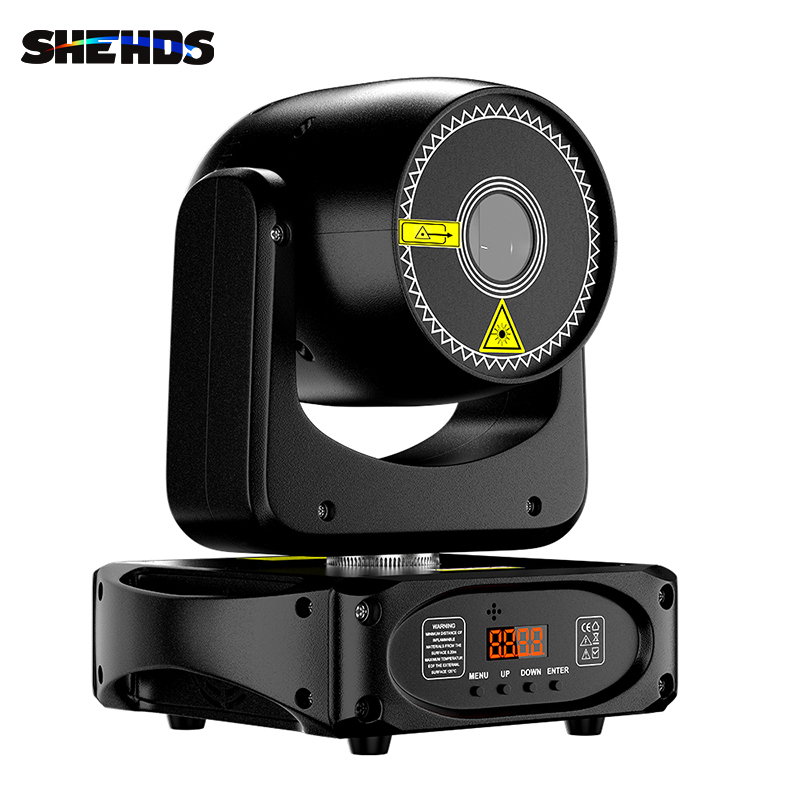

3W MOVING HEAD LASER
It has multiple features and functions, supporting DMX512 and Bluetooth signal protocols, and can be controlled through mobile apps.
Its programmability allows users to choose different animation and pattern effects and operates them through controllers or DMX consoles.
This laser also supports voice control mode, automatic mode, and mobile app control mode,
which can automatically adjust the effect as rhythm beats and environment,
bringing better results to stage performances.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
|
Light source parameters
|
|
Laser Wavelength:
|
R-640nm / G-520nm / B-457nm
|
|
Laser Power:
|
R-800mW / G-800mW / B-1.5W
|
|
Spot Size (laser window spot)
|
5.5mm
|
|
Light Source Divergence Angle
|
＜1.5mrad
|
|
Modulation Mode
|
0~5V analog, up to 25khz/TTL
|
|
Laser Class
|
Class IV
|
|
Imaging System
|
|
Laser Color
|
Red, green, blue mixed colors
|
|
Evenness
|
>98%
|
|
Lens Horizontal Offset
|
-25% to +25%
|
|
Lens Vertical Offset
|
-25% to +25%
|
|
Imaging Mode
|
3D/2D pattern and animation (with software)
|
|
Projection Distance
|
＜20M The best distance is 10~20M
|
|
Playback Rate
|
15 KPPS
|
|
Playback Angle
|
Max50°
|
|
Movement
|
|
Pan
|
540° and 16Bit
|
|
Tilt
|
180° and 16Bit
|
|
Security System
|
|
Safety Standard
|
Follow the IEC60825 standard ,FDA regulations and TUV Laser Safety
|
|
Safety Item
|
Over current and voltage protection
|
|
Ingress Protection Rating
|
IP20
|
|
Operating Temperature
|
-15℃~45℃
|
|

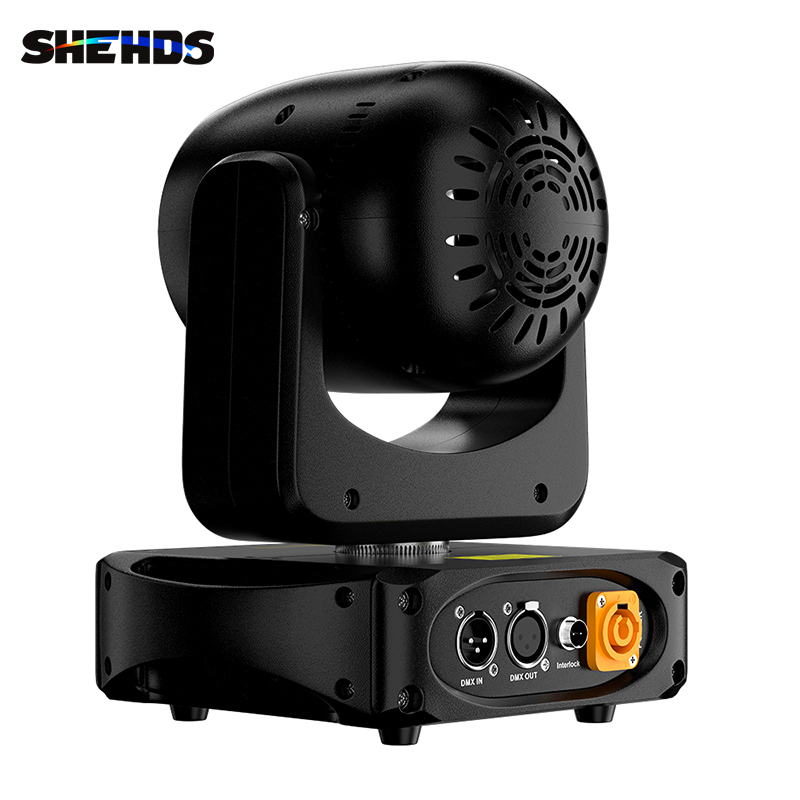

Interface And Control System
|
|
Control Interface
|
DMX In/Out
|
|
Control mode
|
DMX512、Bluetooth APP
|
|
DMX Channel
|
25CH
|
|
Power Interface
|
PowerCon in
|
|
Power Consumption
|
|
Working Power
|
100~240V AC 50/60HZ
|
|
Power Consumption
|
Max 60W
|
|

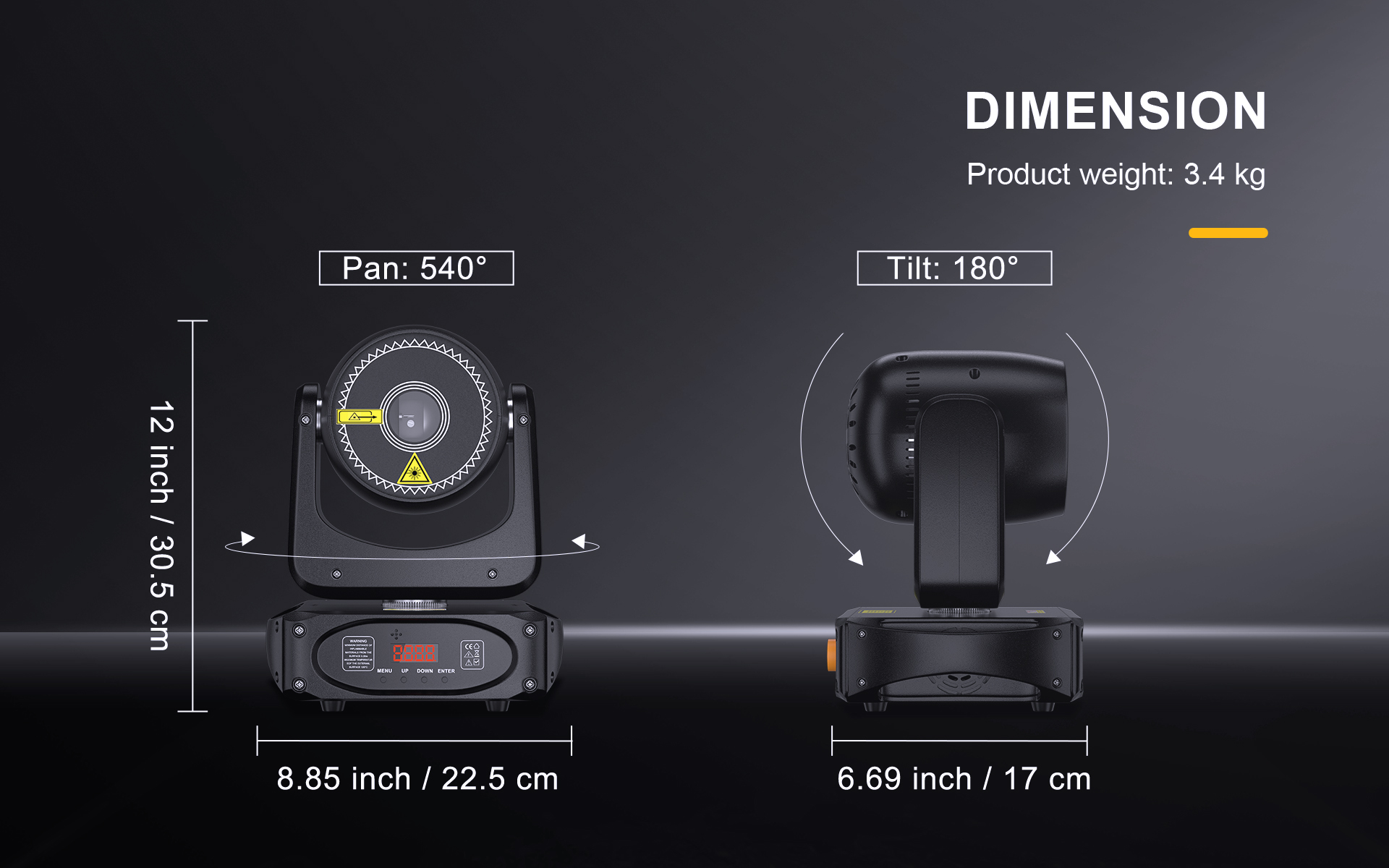

Physical Parameters
|
|

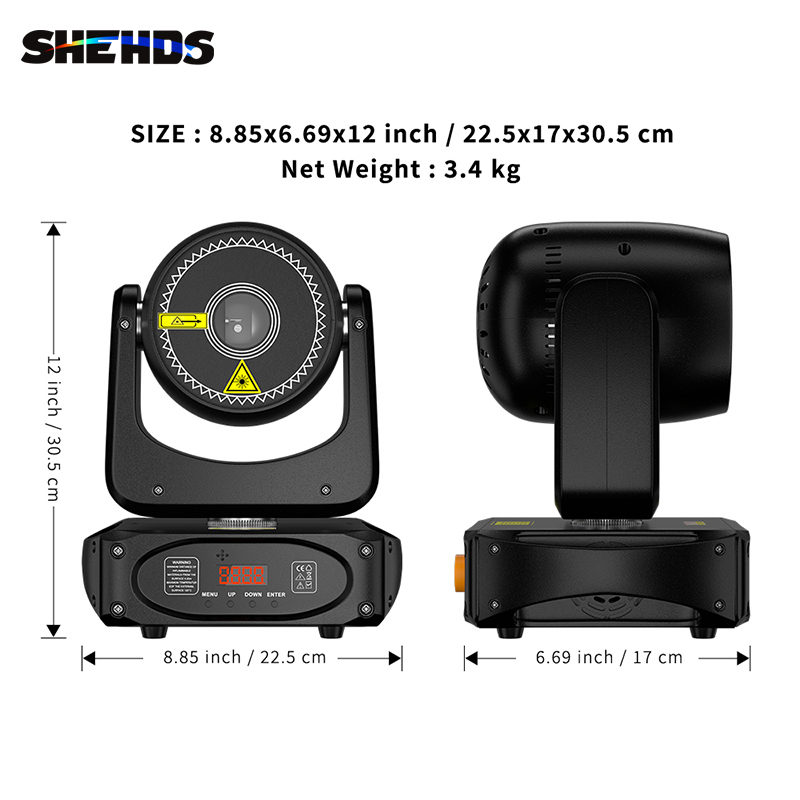

Product Size
|
8.85x6.69x12 inch / 22.5x17x30.5 cm
|
|
Product Weight
|
3.4 kg
|
|
Package Size
|
13.85x10.63x9.45 inch / 34x27x24 cm
|
|
Package Weight
|
4.41 kg
|

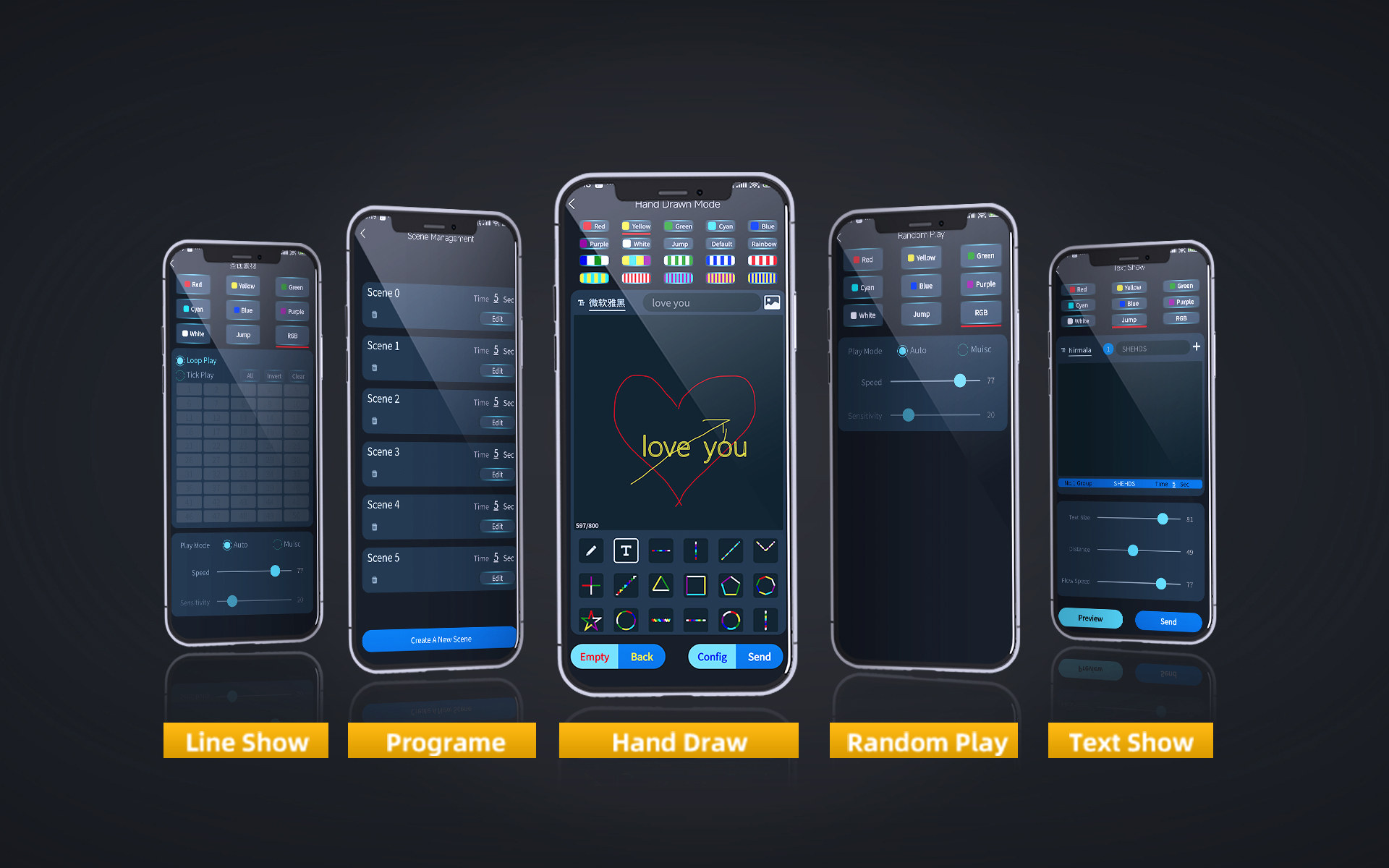

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.

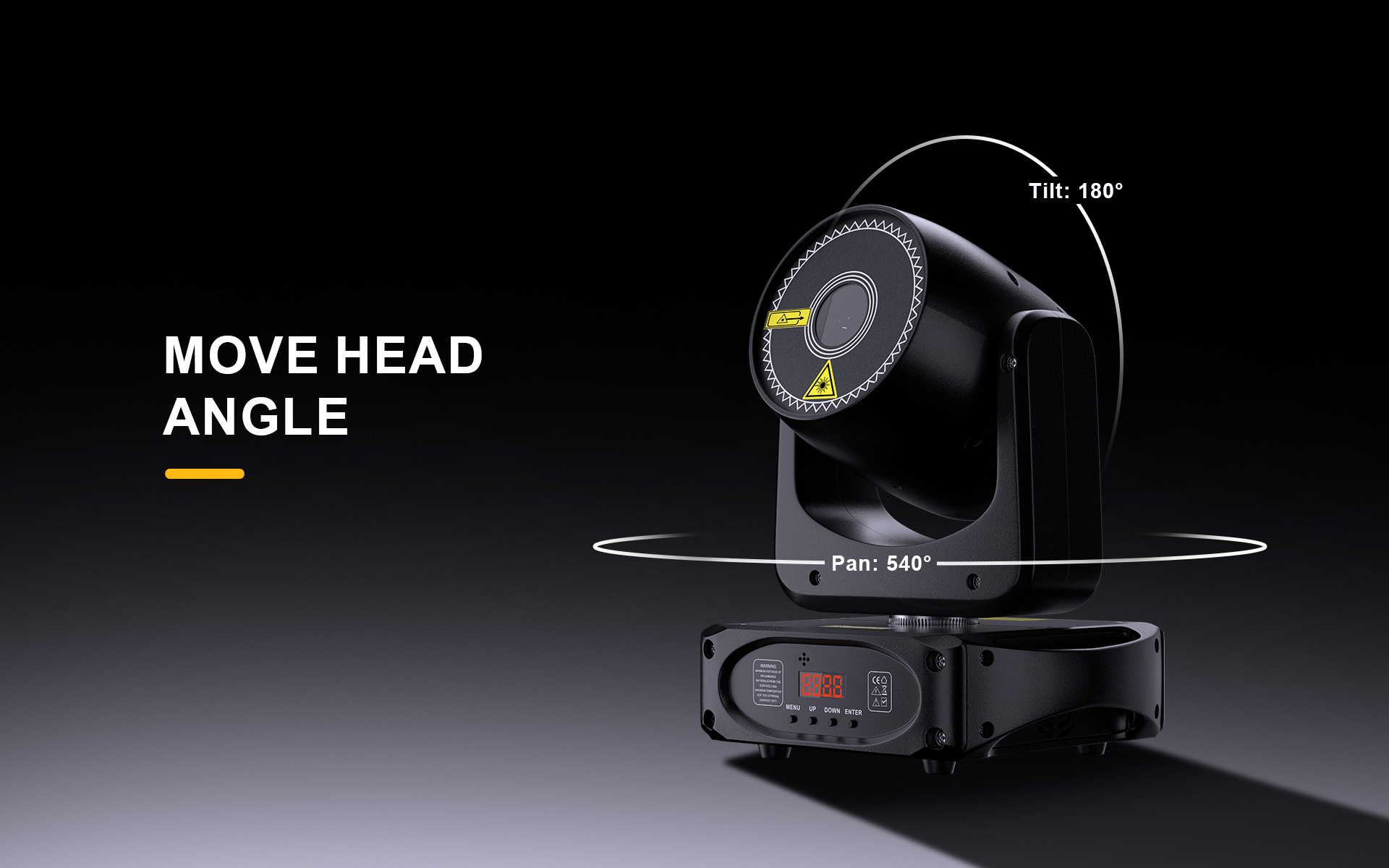

Move Head Angle
Allow users to adjust the scanning speed, angle, and range as needed to adapt to different scenarios and needs.
This enables users to adjust the effects more conveniently according to the scene requirements, and also reduces the difficulty of device placement and wiring.

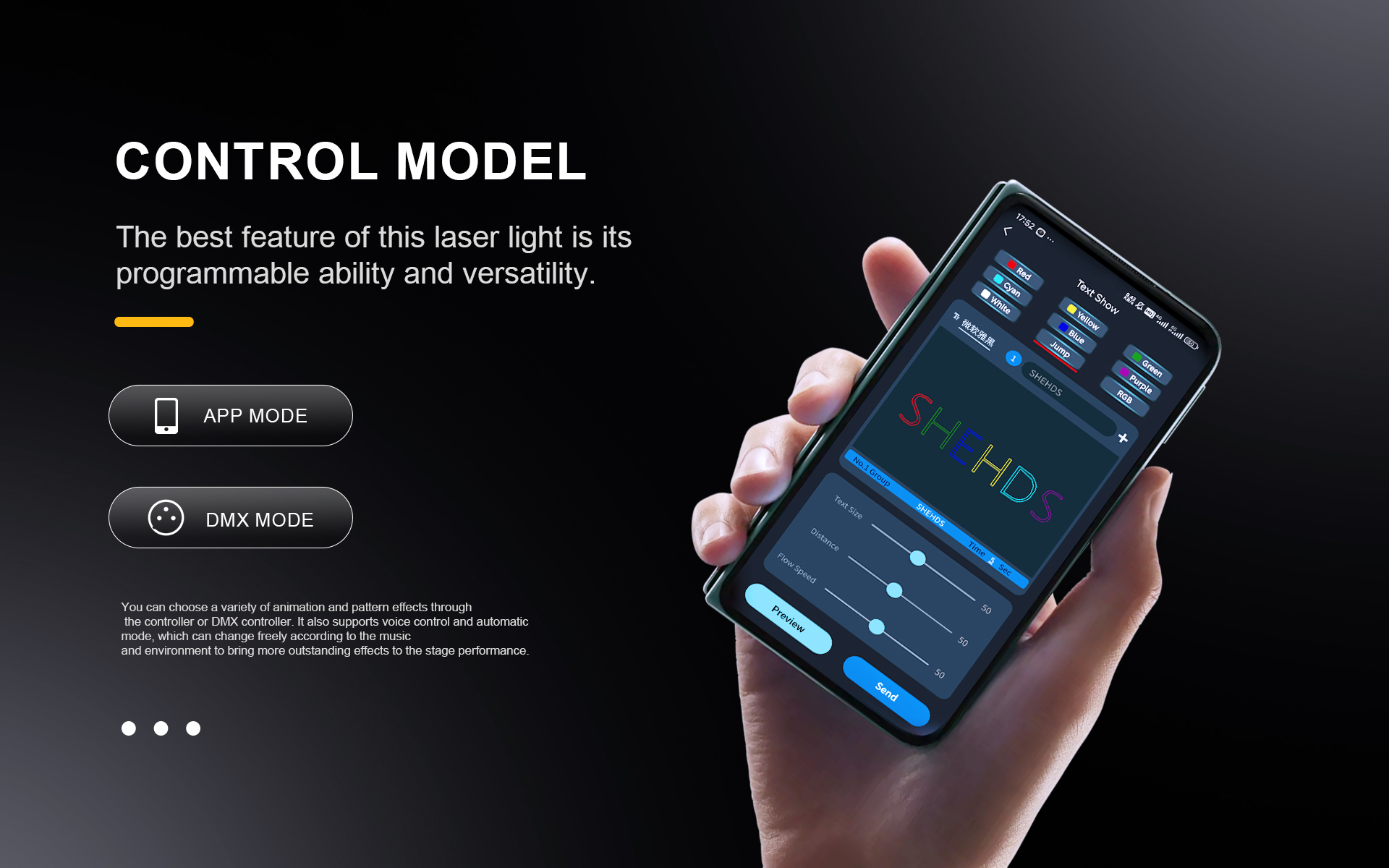

Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
RGB Laser Source
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
Can mix multiple brilliant colors!
For example, Magenta, Yellow，Cyan，White
Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.

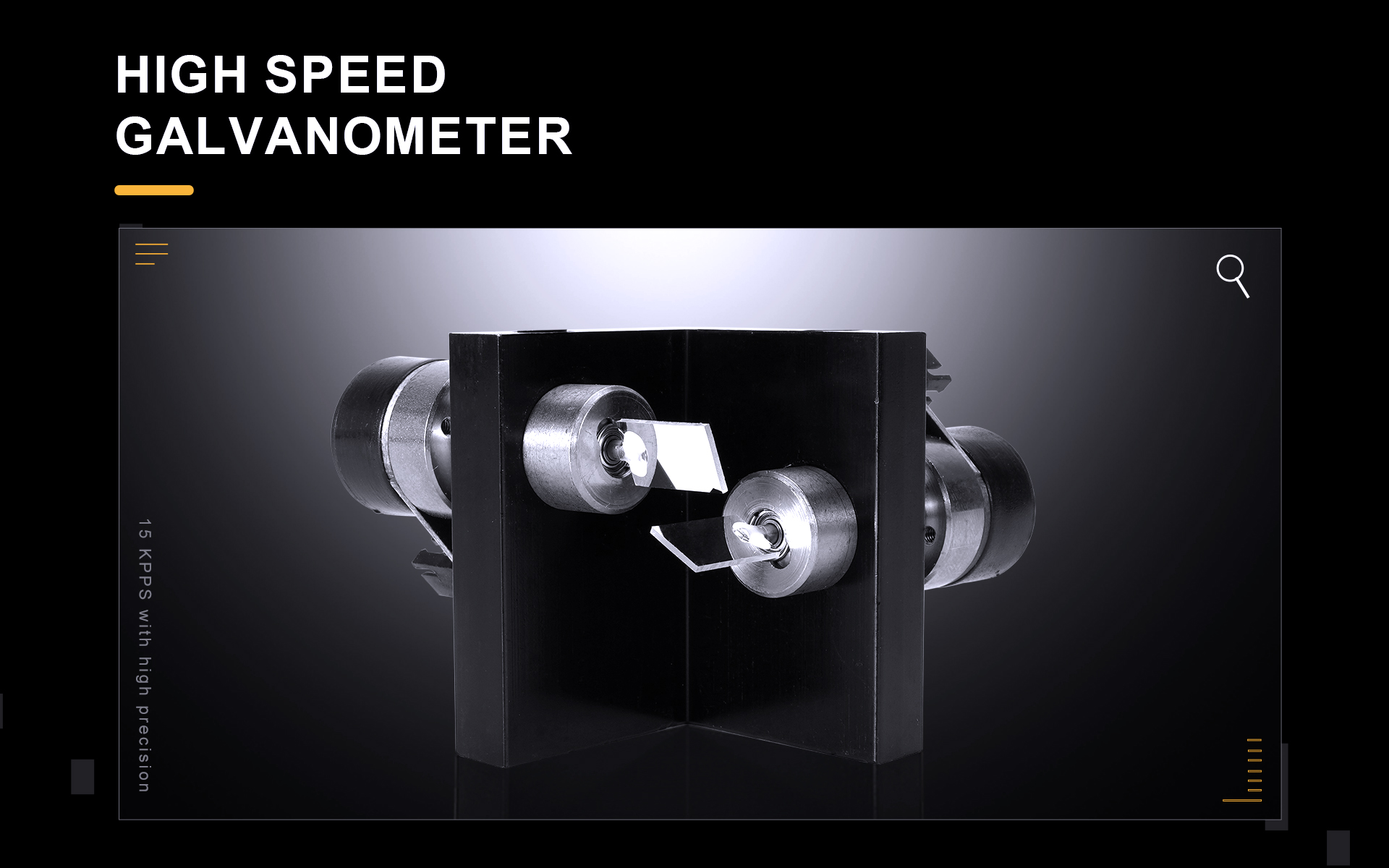

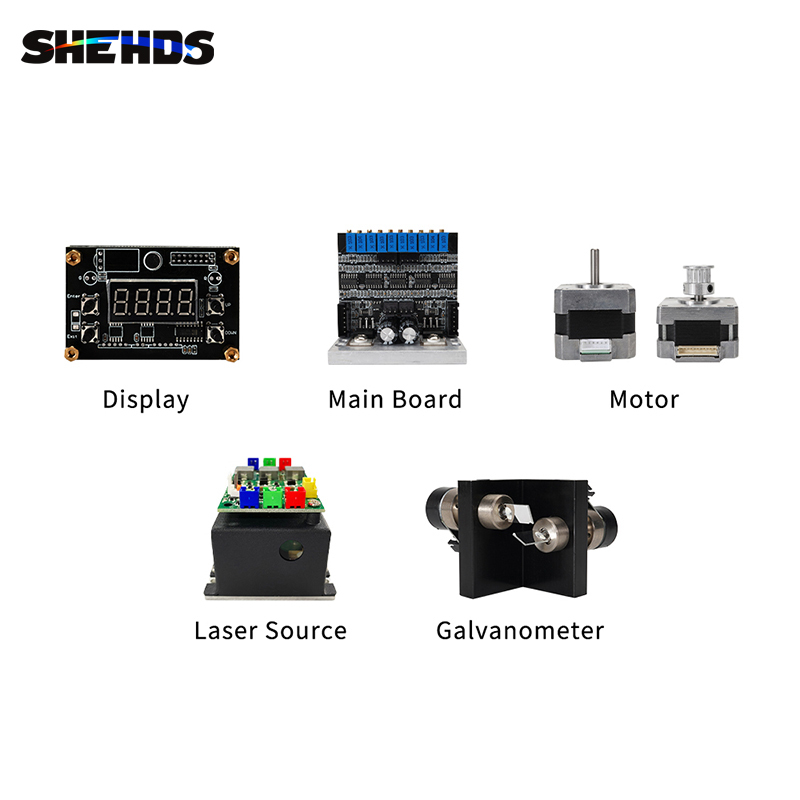

High Speed Galvanometer
20 KPPS with high precision
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The Northern Lights Canopy Effects
Presenting a dreamy and colorful visual effect similar to the auroram,
Providing more possibilities and creative space for various performance occasions.

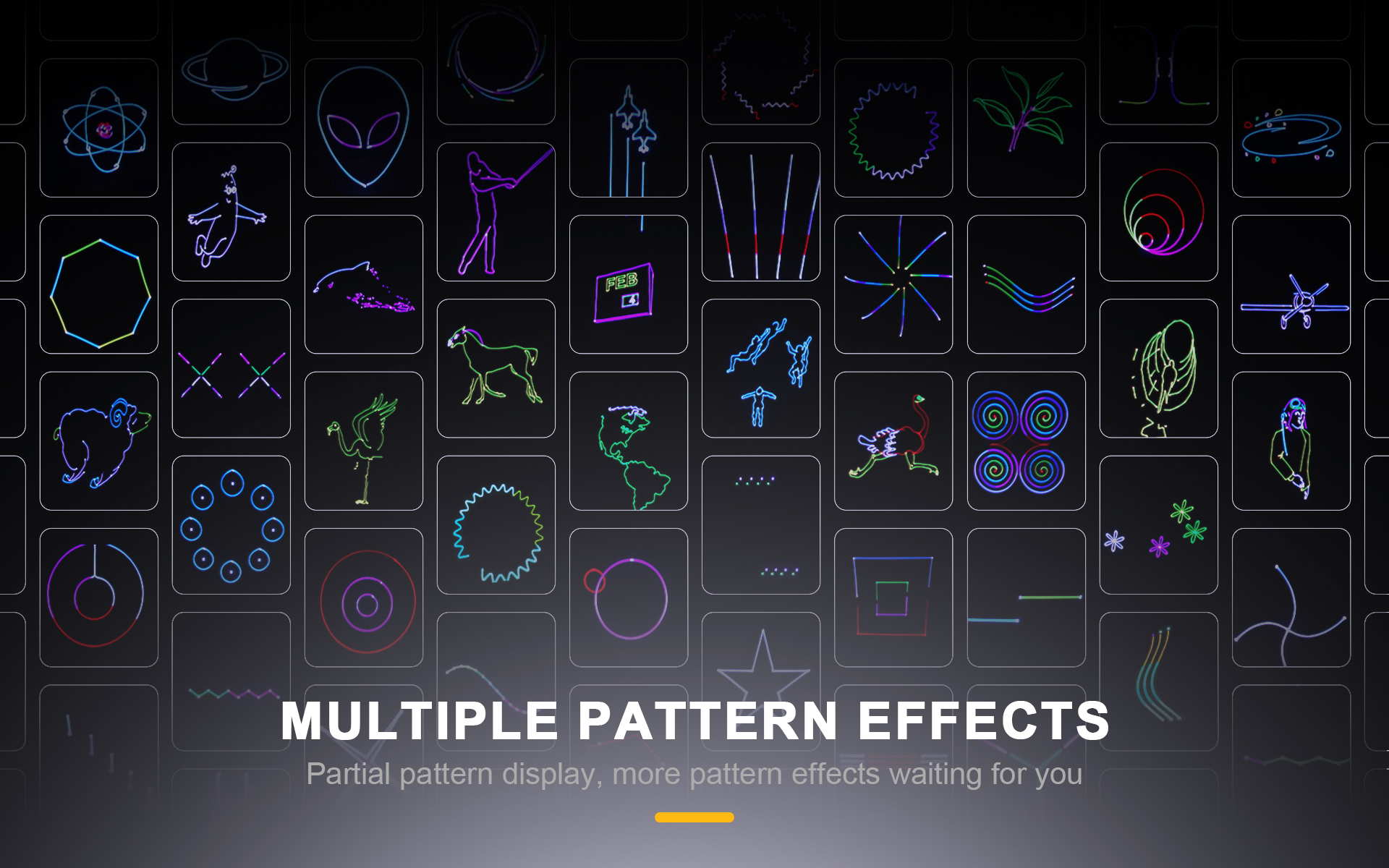

Multiple Pattern Effects
Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience.

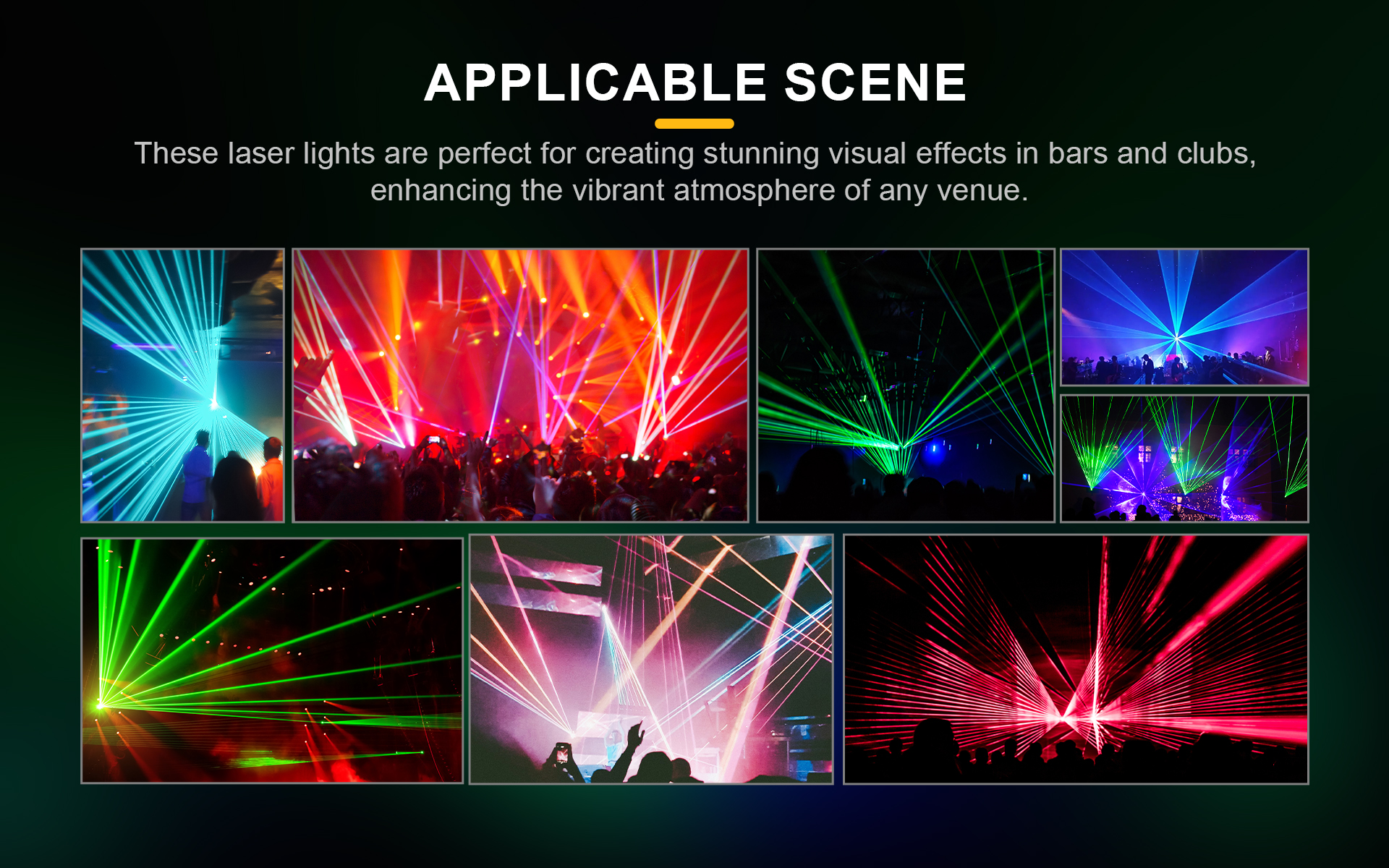

Applicable Scene
The 3W laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness.

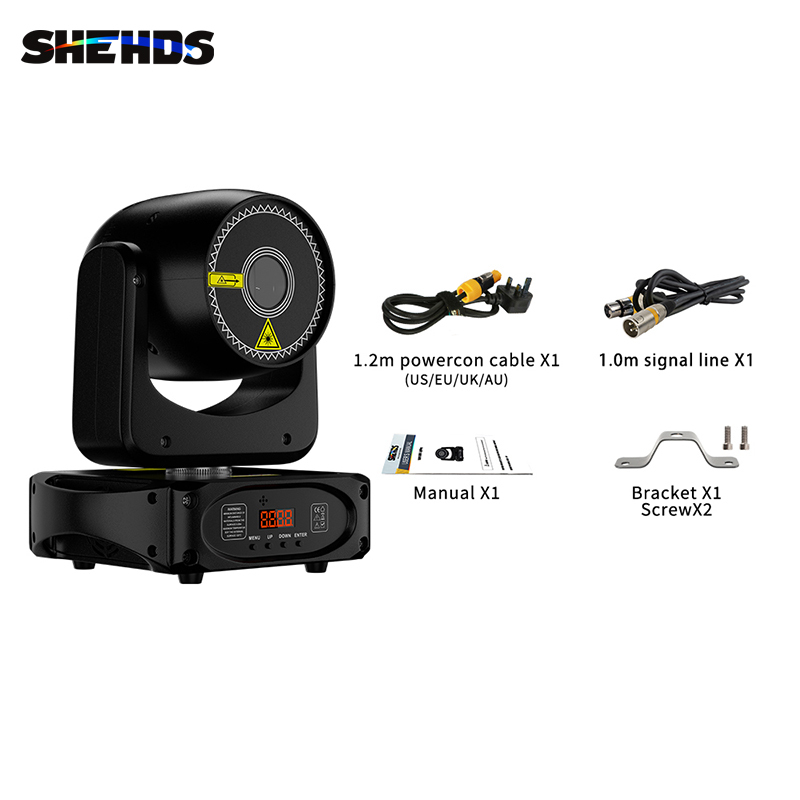

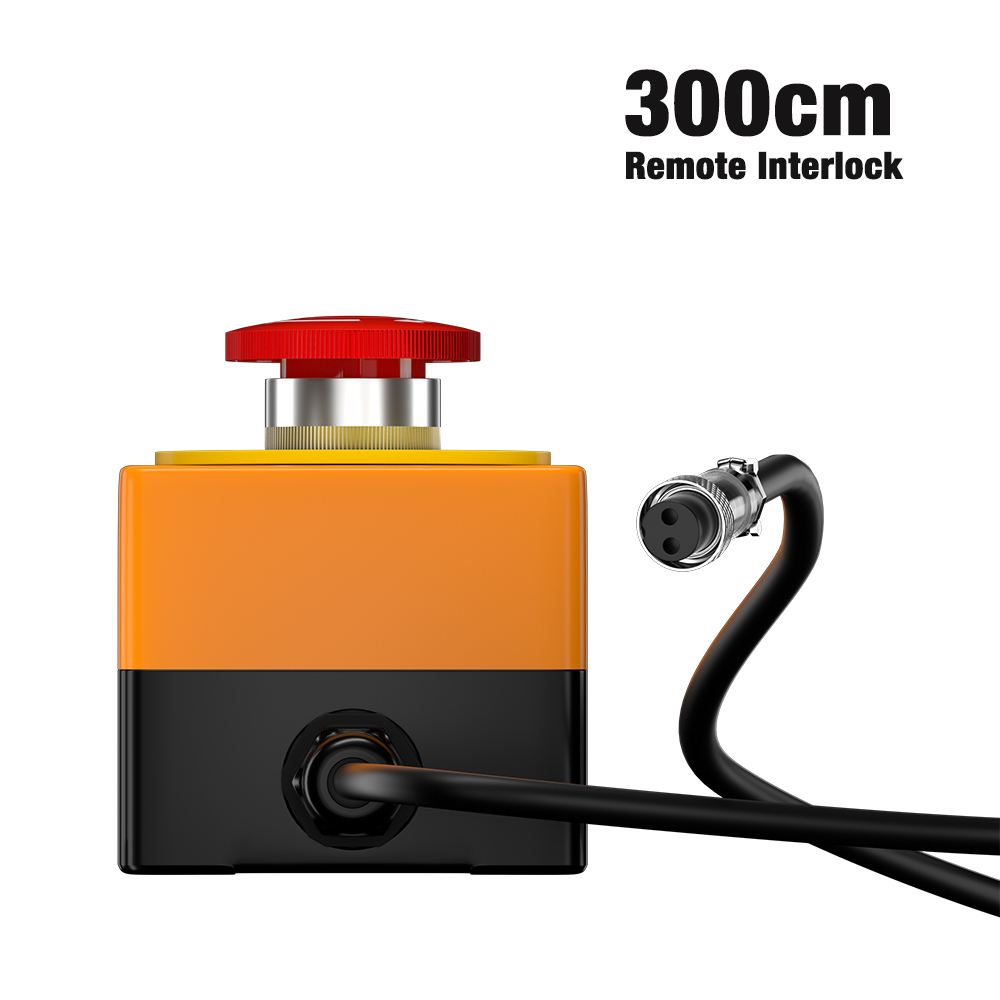

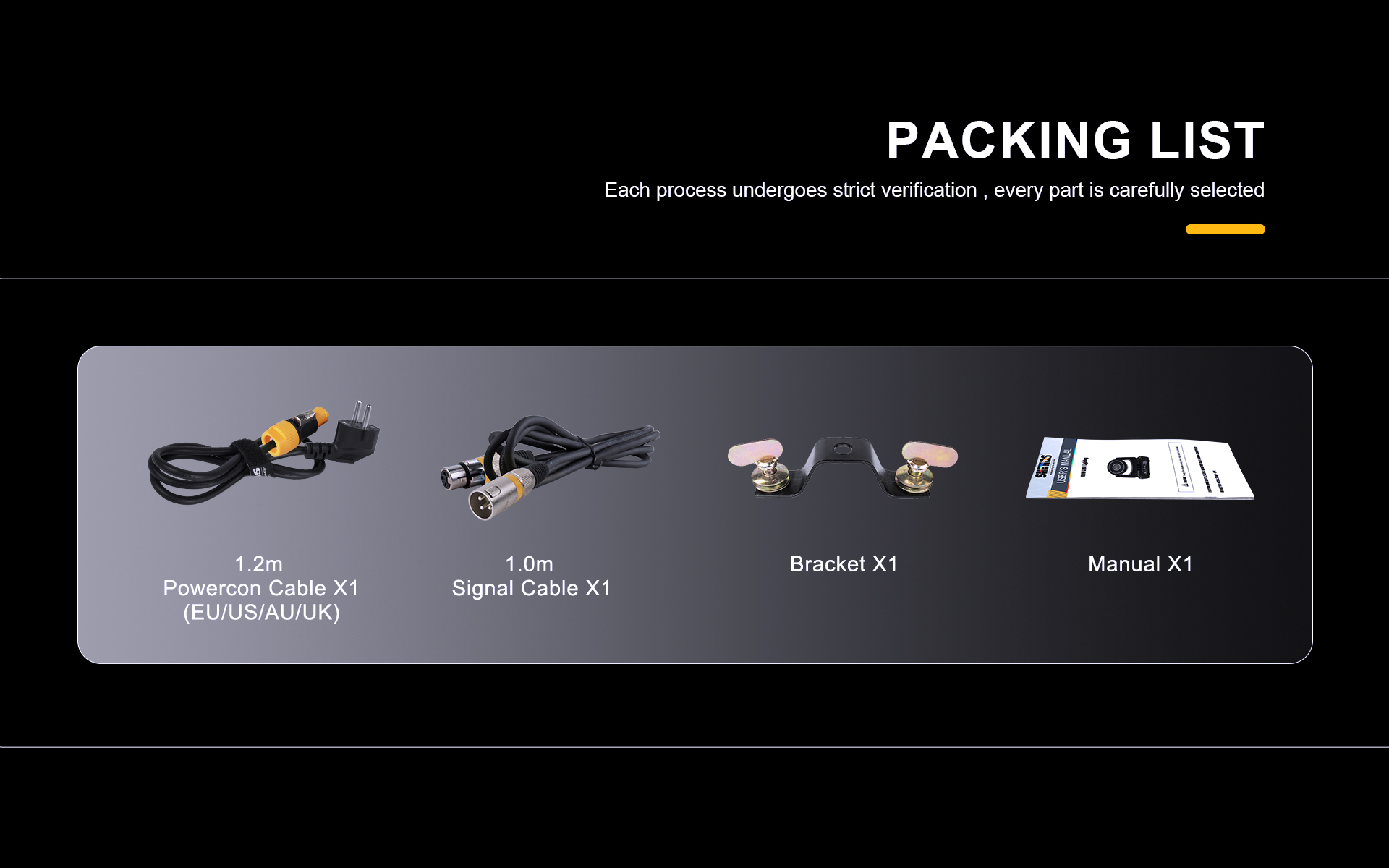

Additional Accessories
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

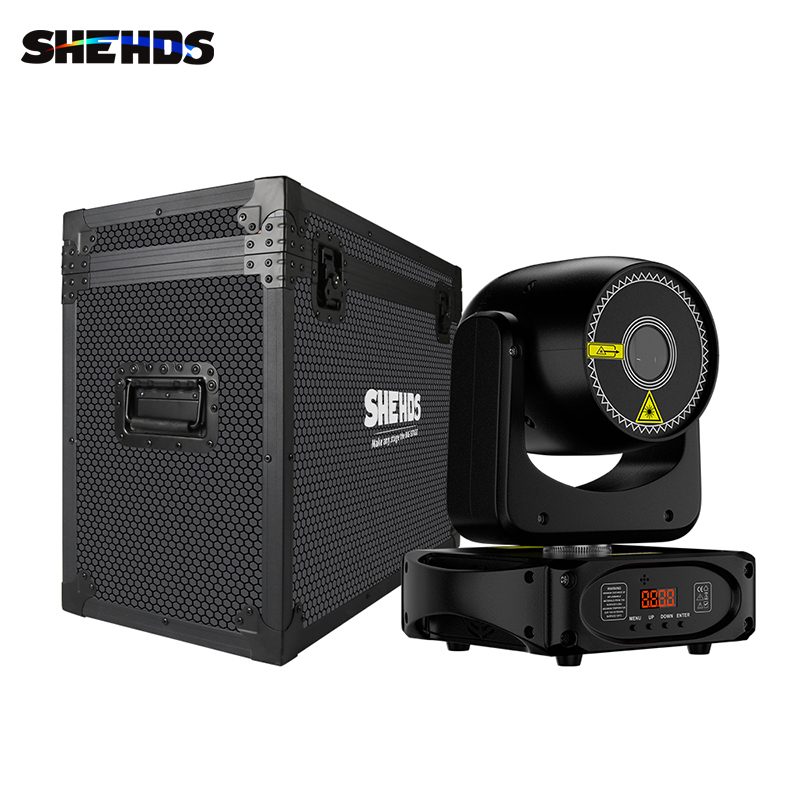

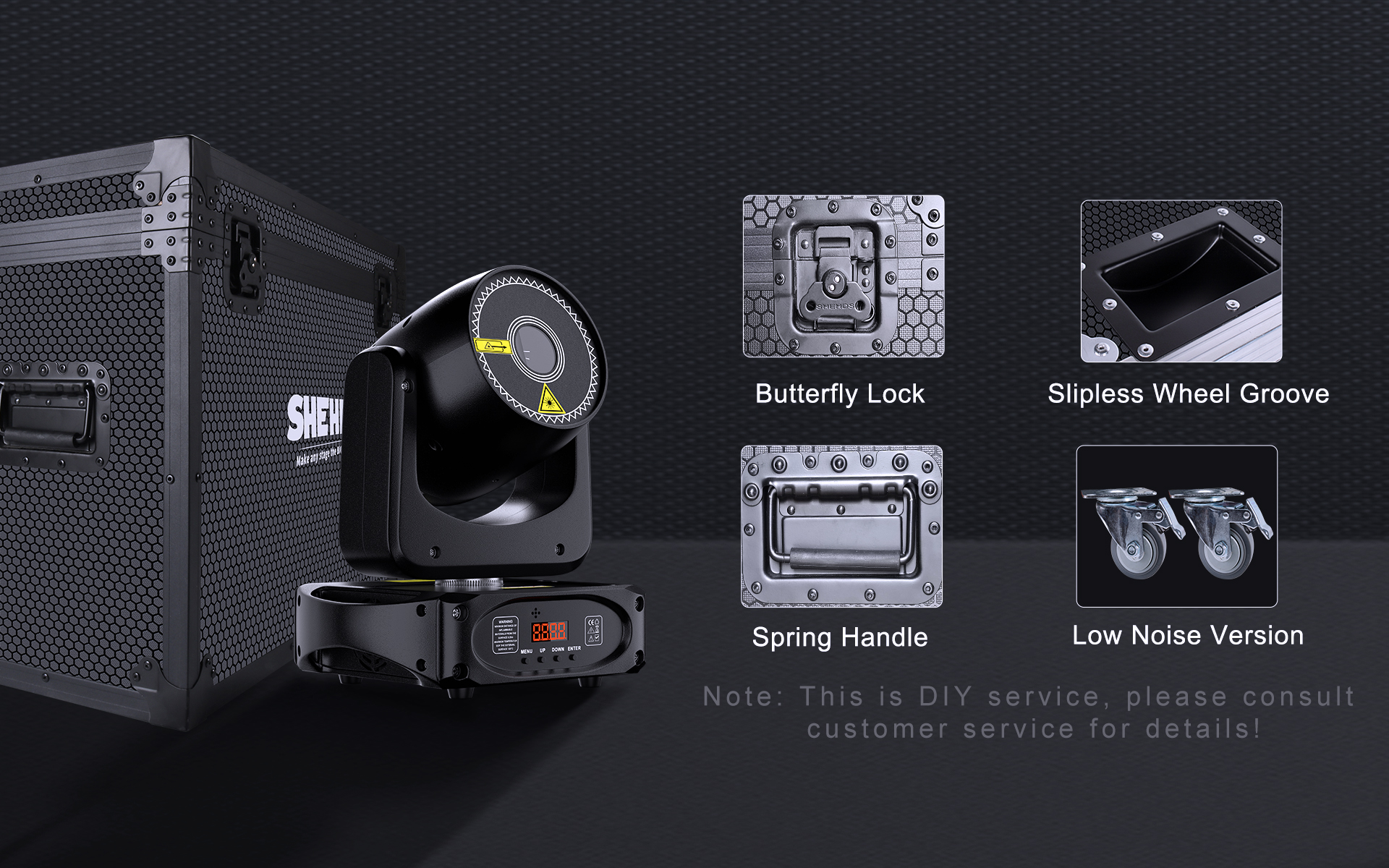

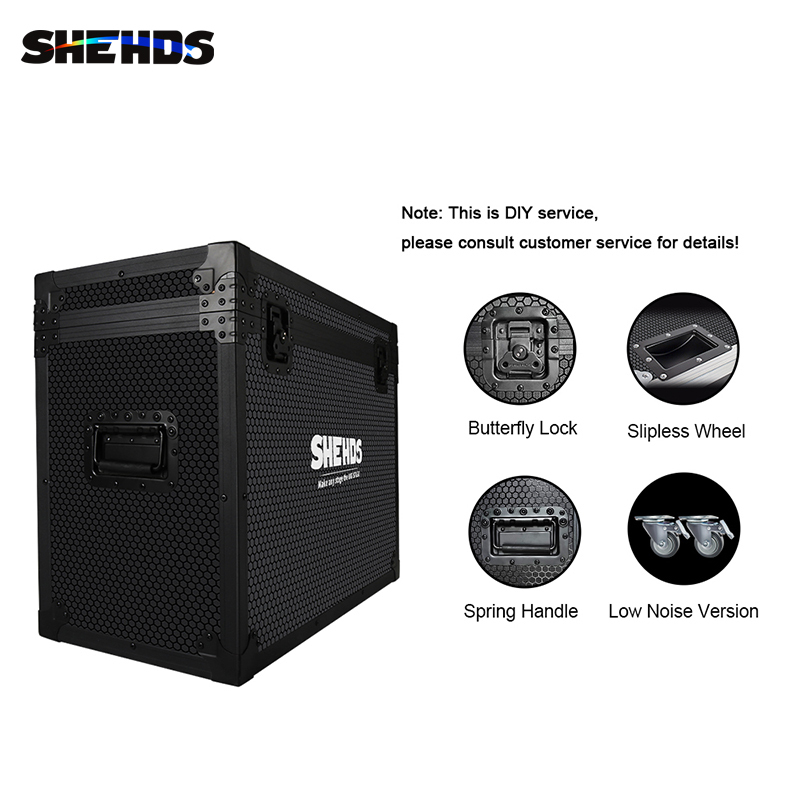

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
Qualification Certificate
Our laser equipment has not only obtained certification from the international authoritative organization FDA, but also passed the deviation application authorization certification for laser special equipment, ensuring that every device meets the strictest safety standards. This is not only a recognition of our technical strength, but also a commitment to your peace of mind when using it. Behind every laser beam is our pursuit of quality and safety, allowing you to feel at ease and enjoy efficiency and excellence when using it.
