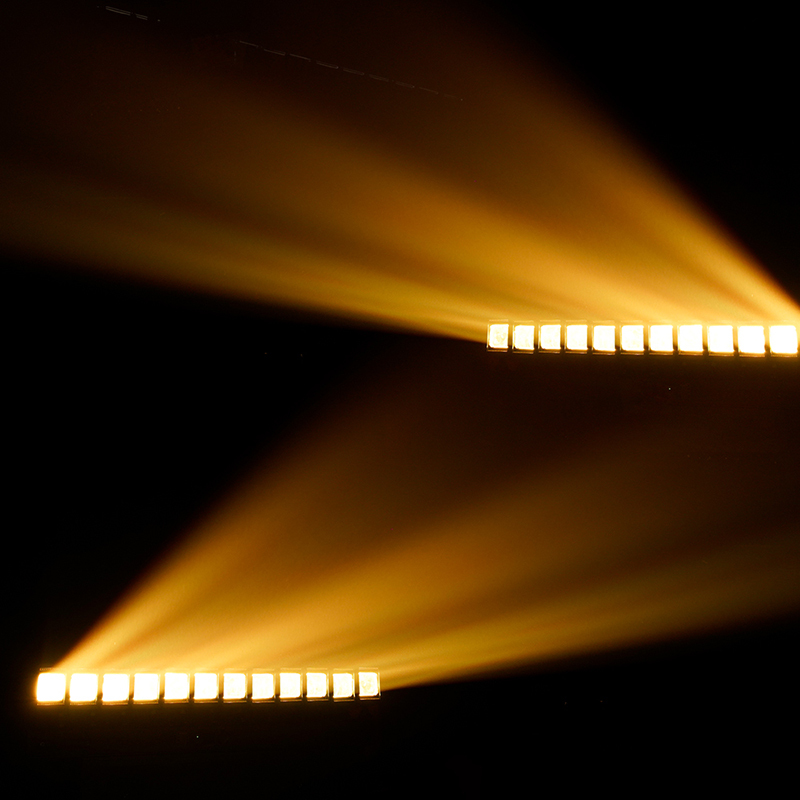

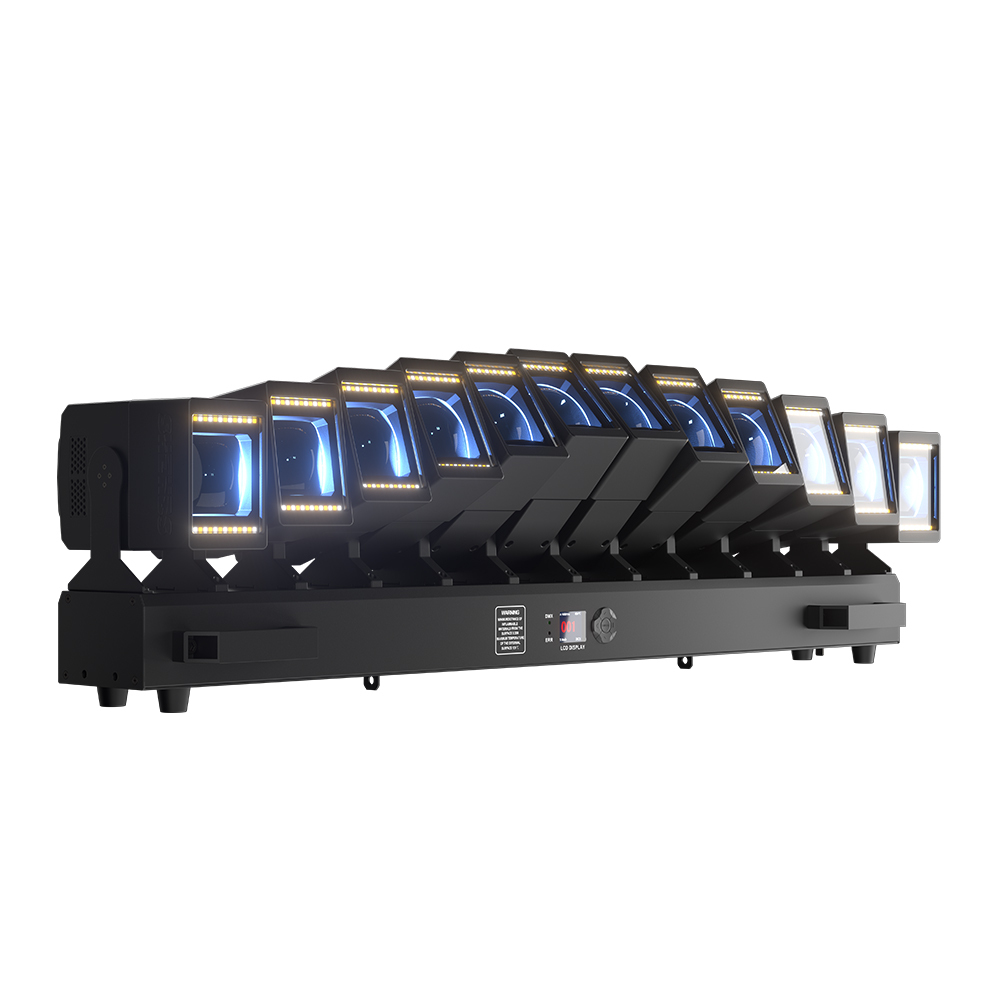

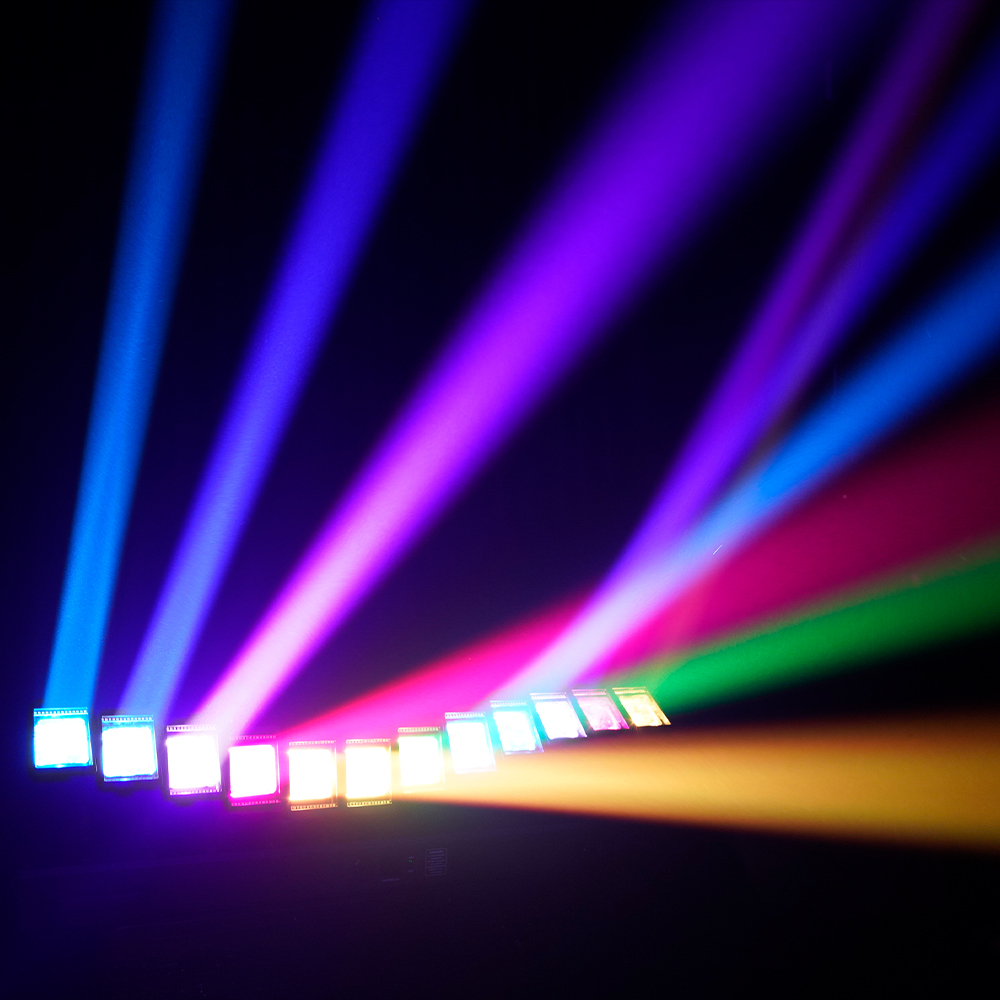

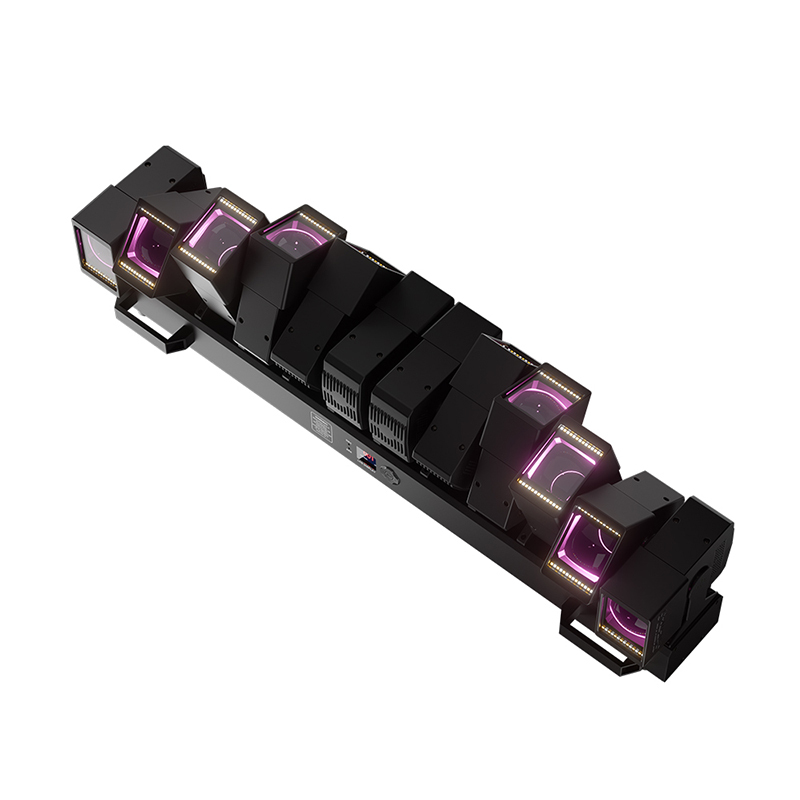

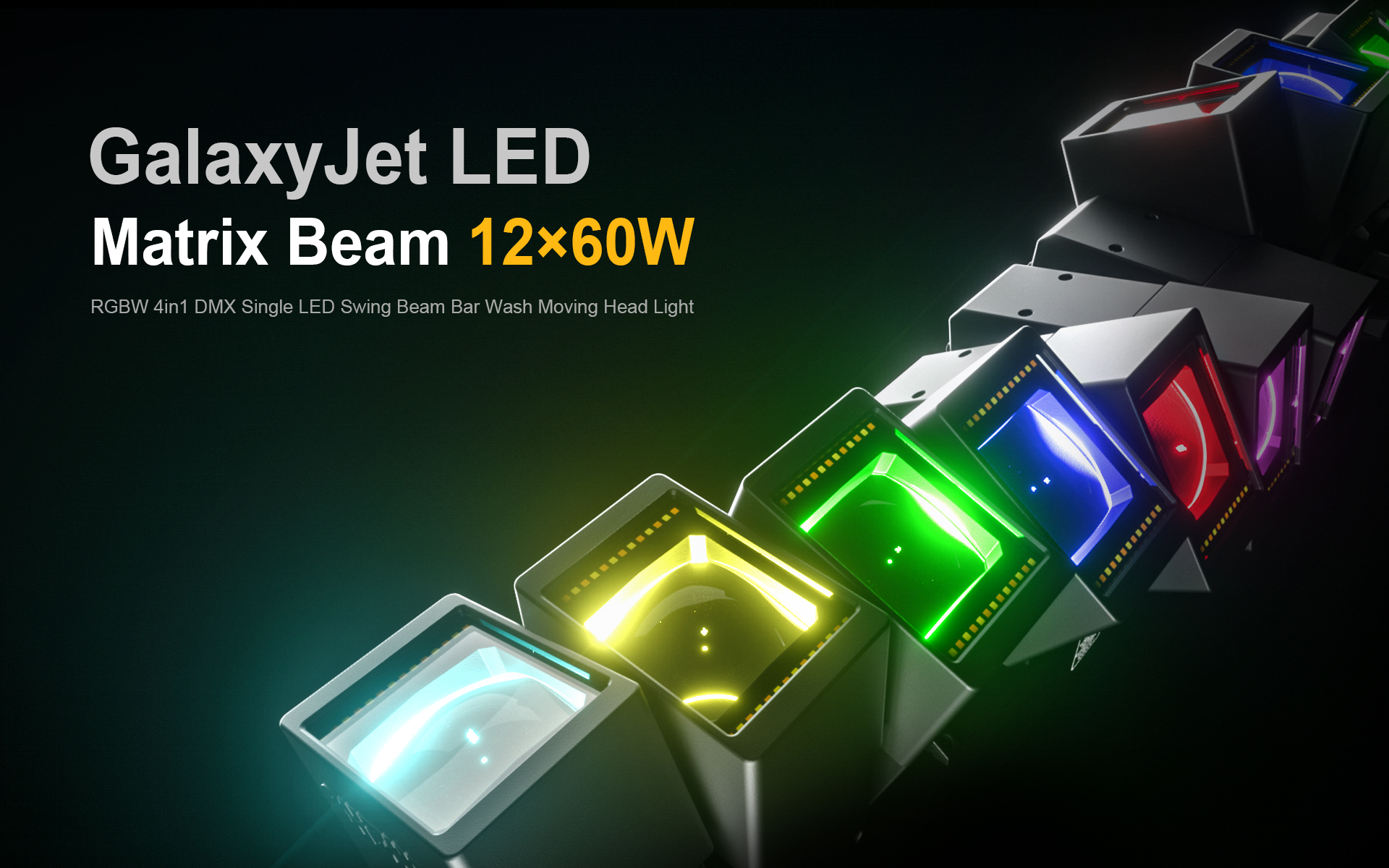

GalaxyJet LED Matrix Beam 12×60W
RGBW 4in1 DMX Single LED Swing Beam Bar Wash Moving Head Light
Technical Specifications
|
Light source parameters
|
|
Dimmer:
|
0-100% 16Bit mechanic
|
|
Light Source:
|
LED 12x60W RGBW color mixing
|
|
Beam Lux:
|
58480 lux @1m
|
|
Zoom Angle:
|
2.8~31 degrees
|
|
CRI:
|
71
|
|
Strobe:
|
Flash rate 0-25HZ
|
|
Colour temperature output:
|
W/7321K
|
|
Dimmer:
|
0-100% Linear dimmer
|
|
Security System
|
|
Safety Item
|
Over current and voltage protection
|
|
Degree Of Protection
|
IP20
|
|
Operating Temperature
|
-25℃~45℃
|
|

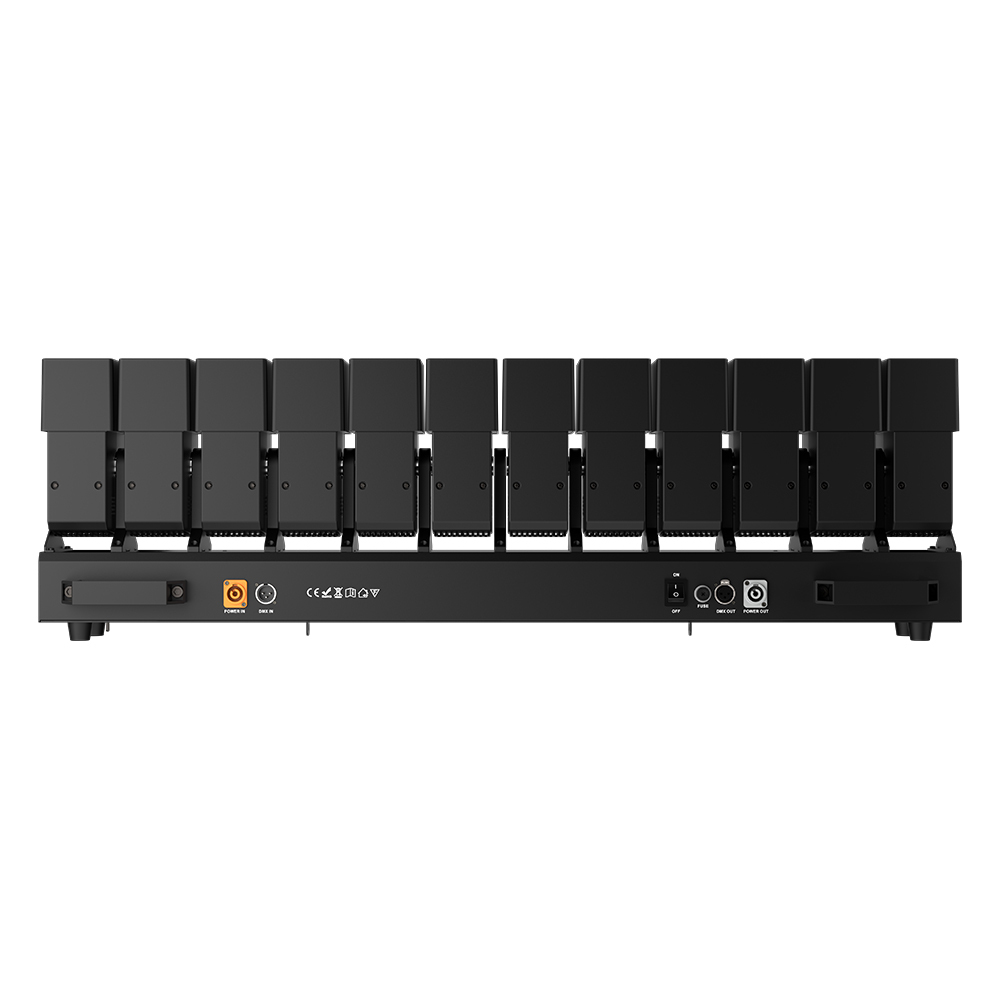

Interface And Control System
|
|
Control Interface
|
DMX In/Out
|
|
DMX Channel
|
20/53/101/155/169A/169B/179/227CH
|
|
Power Interface
|
PowerCon
|
|
Noise (LED Full on):
|
50dB@1m
|
|
Noise (moving head):
|
65dB@1m
|
|
Signaling Protocol
|
DMX512/RDM/Master-Slave/Auto/Sound/CTO
|
|
Cooling System
|
|
Cooling Method
|
Passive heat dissipation
|
|
Power Consumption
|
|
Working Power
|
830W
|
|
Power Supply:
|
900W AC100V ~ 240V / 50 ~ 60Hz
|
|
Physical Parameters
|
|
Tilt Movement:
|
180°
|
|
Material:
|
High temperature resistant and flame retardant plastic housing
|
|

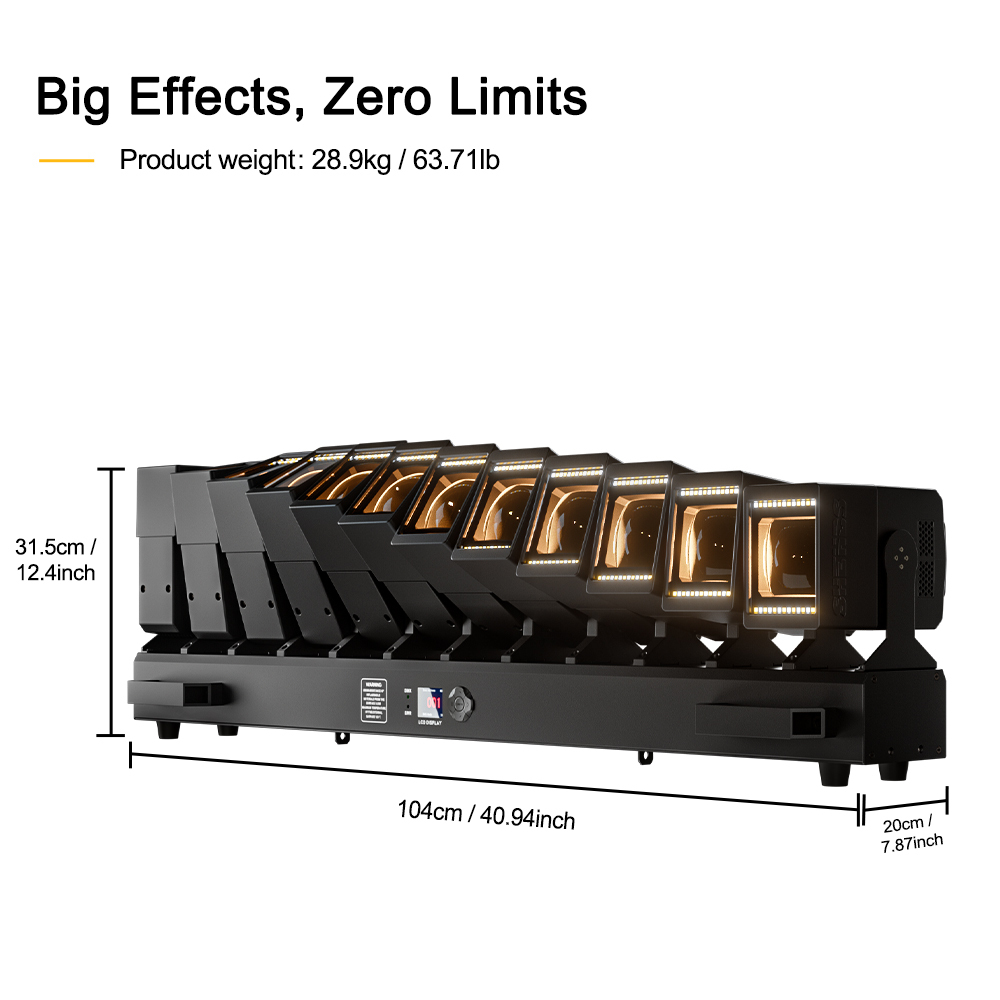

Product Size
|
104X20X31.5
|
|
Product Weight
|
28.9kg
|
|
Package Size:
|
111X24X38.5cm
|
|
Package Weight
|
32.5kg
|
Pro Creators, Real Shows
See how creators light up real sets with SHEHDS, highlights from reviews, shoots, and live performances.
Power Meets Art
60W RGBW LEDs Deliver Stunning Color Blends
Brighter Than You Expect
58,480+ Lux @1m, Pure Beam Intensity
7500K White Beam, Pure and Powerful

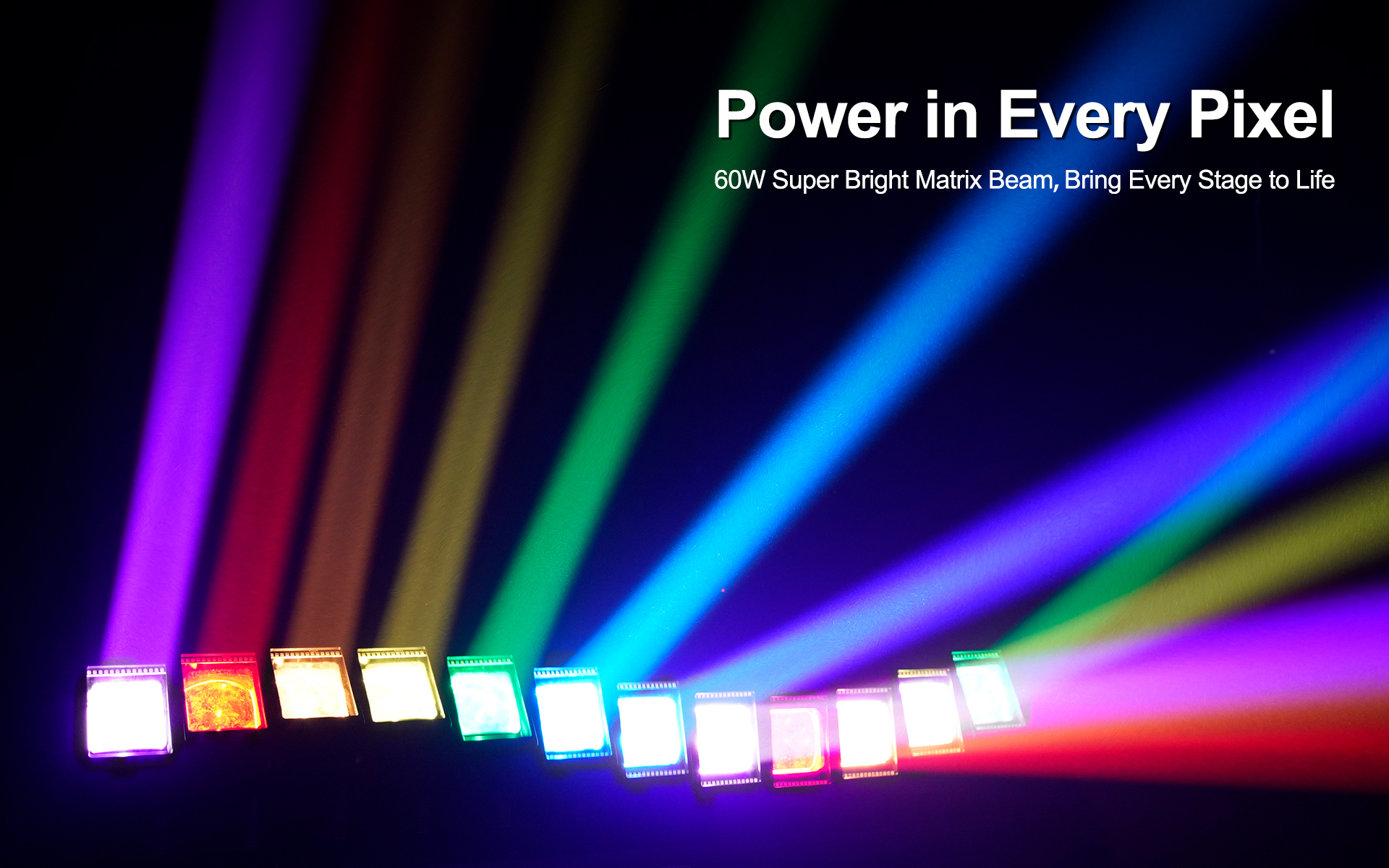

Power in Every Pixel
60W Super Bright Matrix Beam-Bring Every Stage to Life

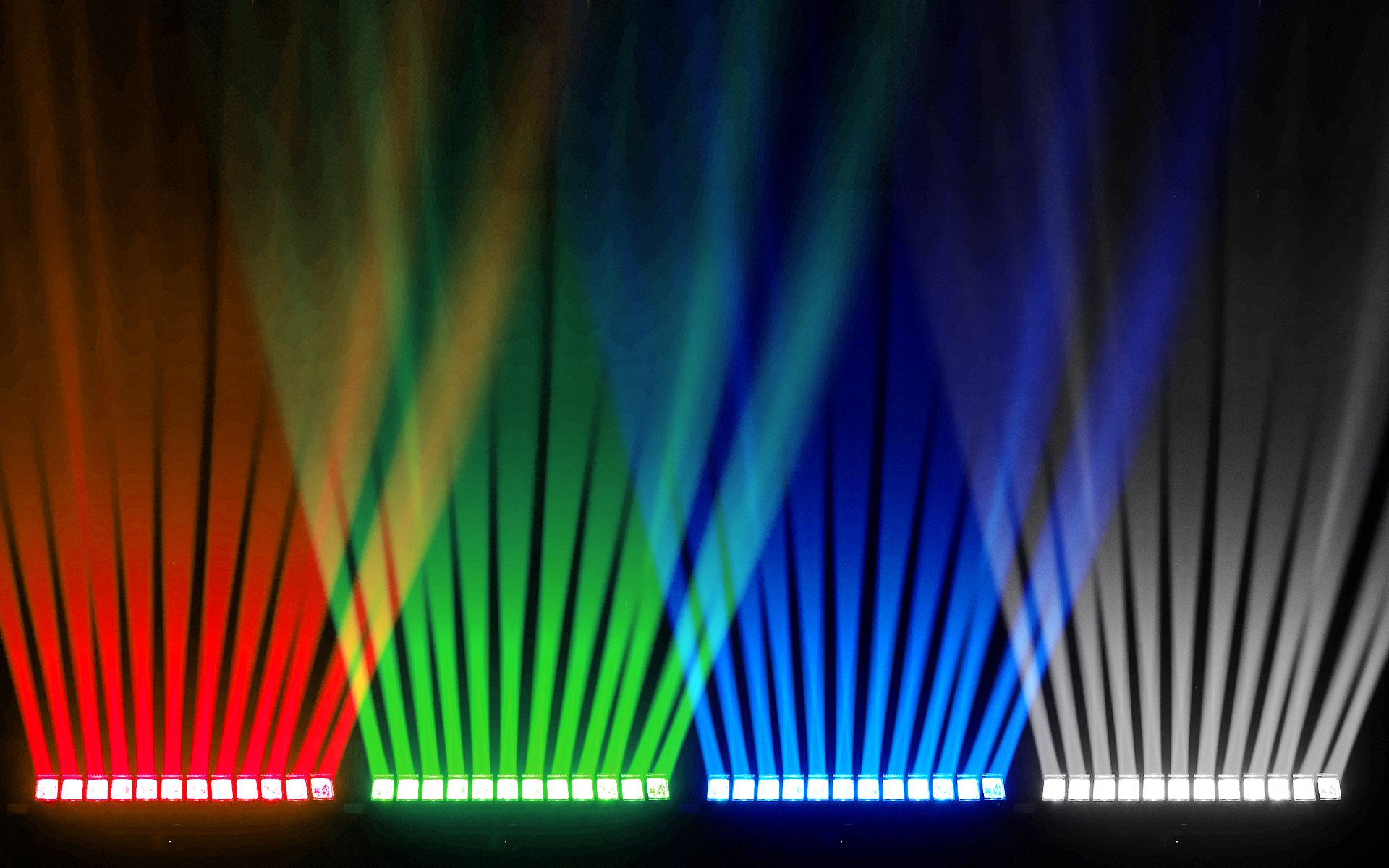

True-to-Life Colors
RGBW four-color mixing system for vivid tones and accurate color.

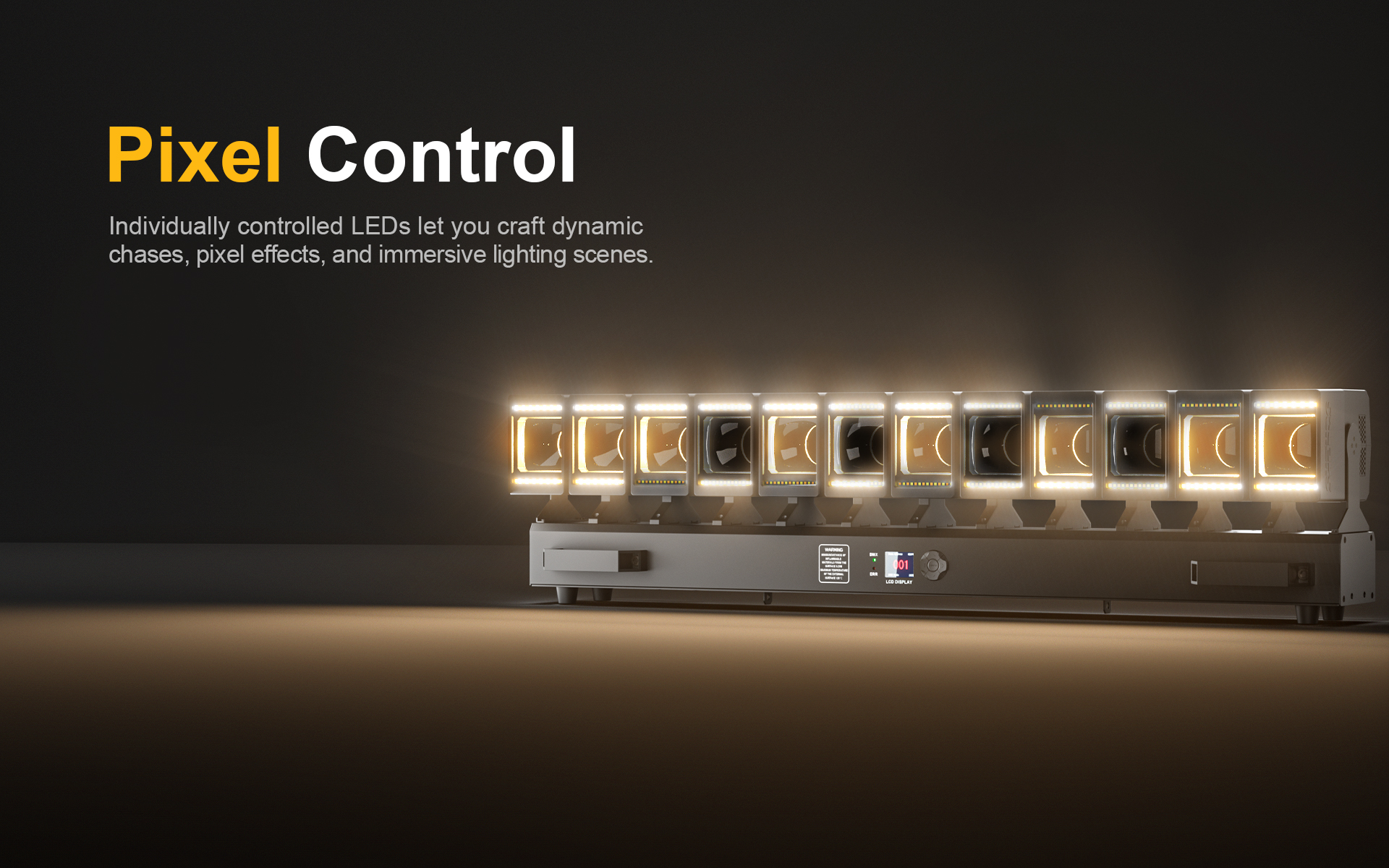

Pixel Control
Individually controlled LEDs let you craft dynamic chases, pixel effects, and immersive lighting scenes.

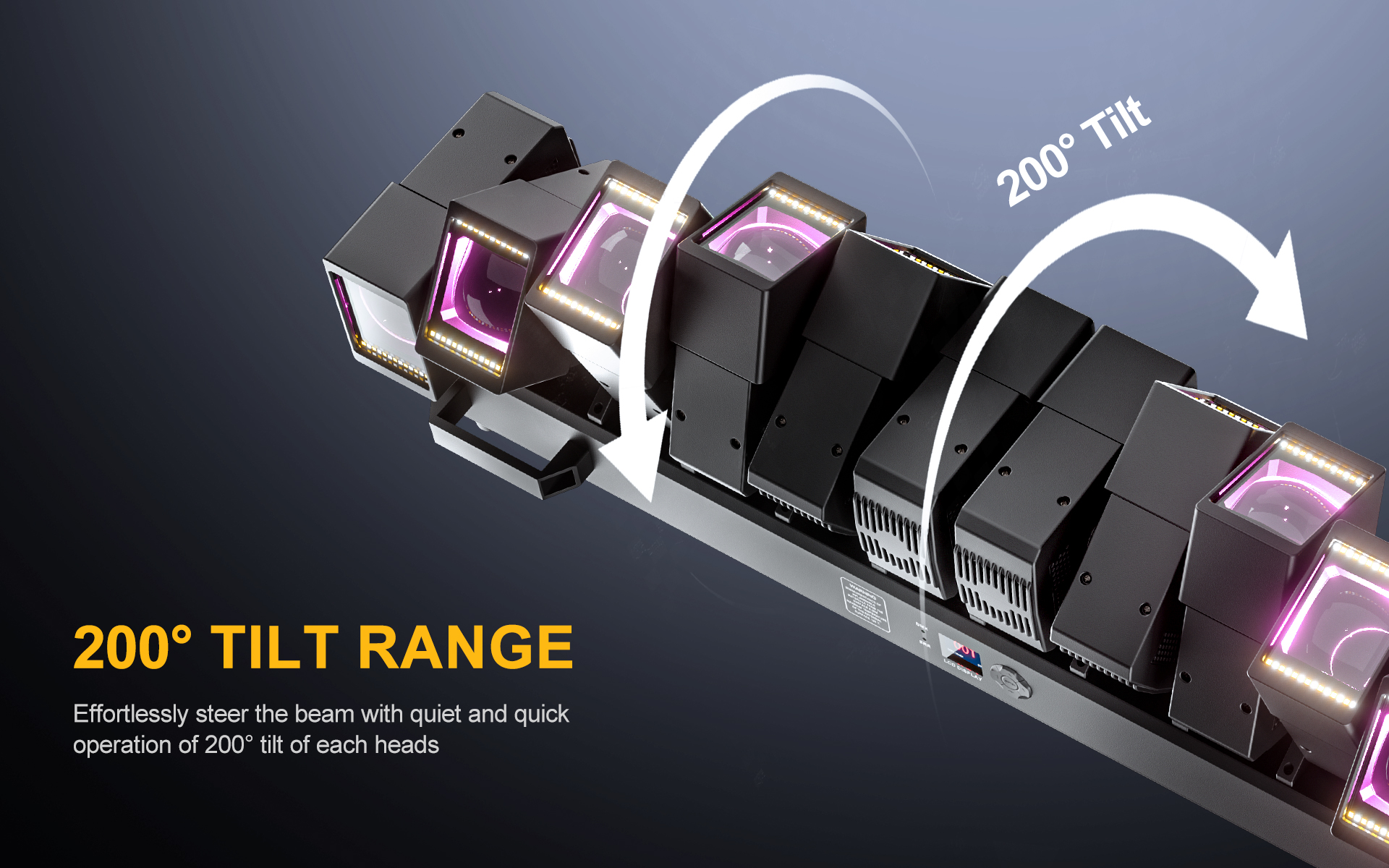

200° Tilt
Effortlessly steer the beam with quiet and quick operation of 200° of tilt of each heads.
Flexible Beam Angle
Individually controllable tilting heads with a 2.8° to 31° zoom range.

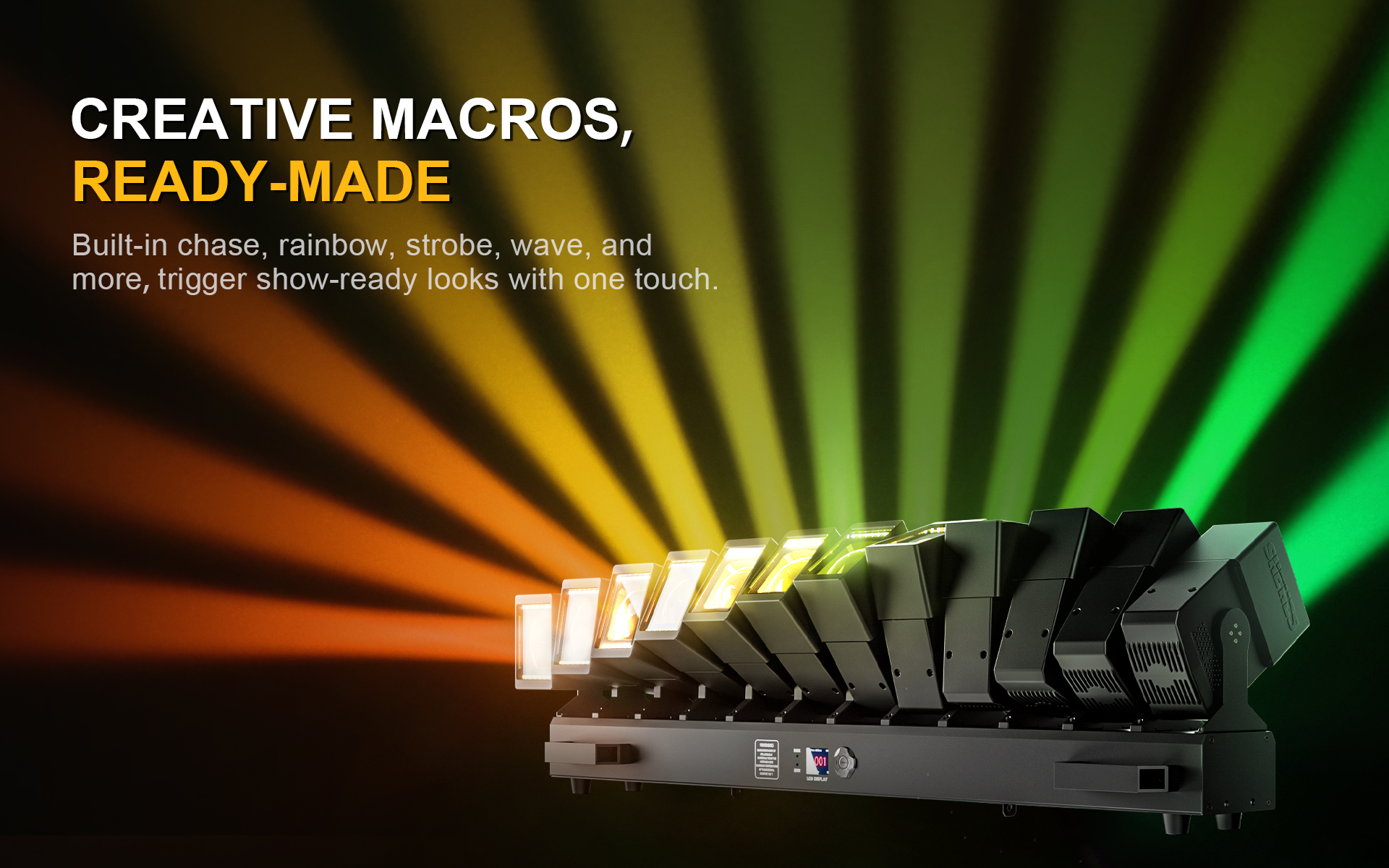

Creative Macros, Ready-Made
Built-in chase, rainbow, strobe, wave, and more—trigger show-ready looks with one touch.
Efficient, Even Output
Composite optics for smooth color，RGBW works together to deliver saturated colors plus punchy true white-clean hues with minimal color cast.

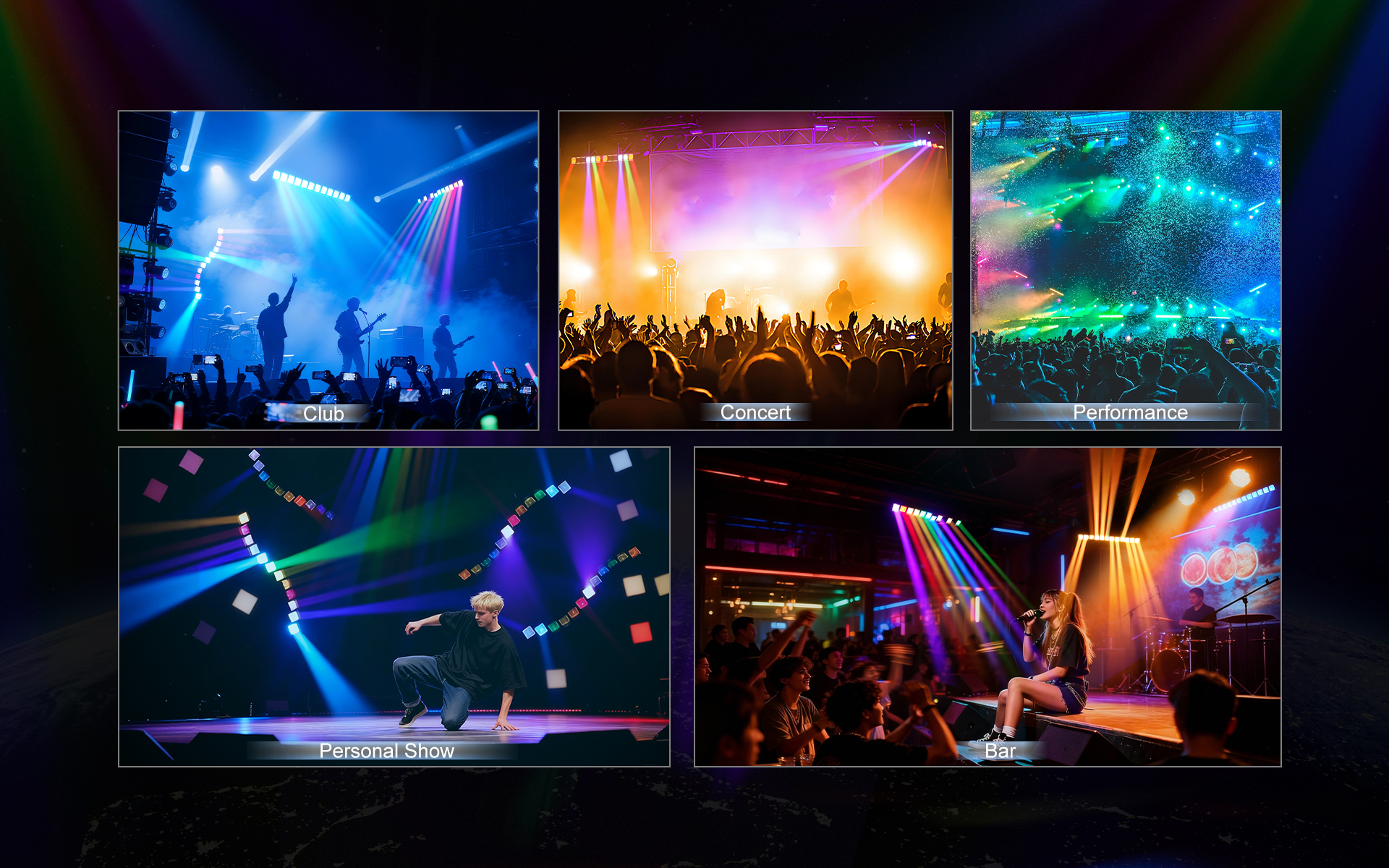

Various Applications
From DJ Booth to Festival Stage, Ready for Any Event.
Silence Meets Power
Advanced Cooling System, Low Noise ≤65dB.

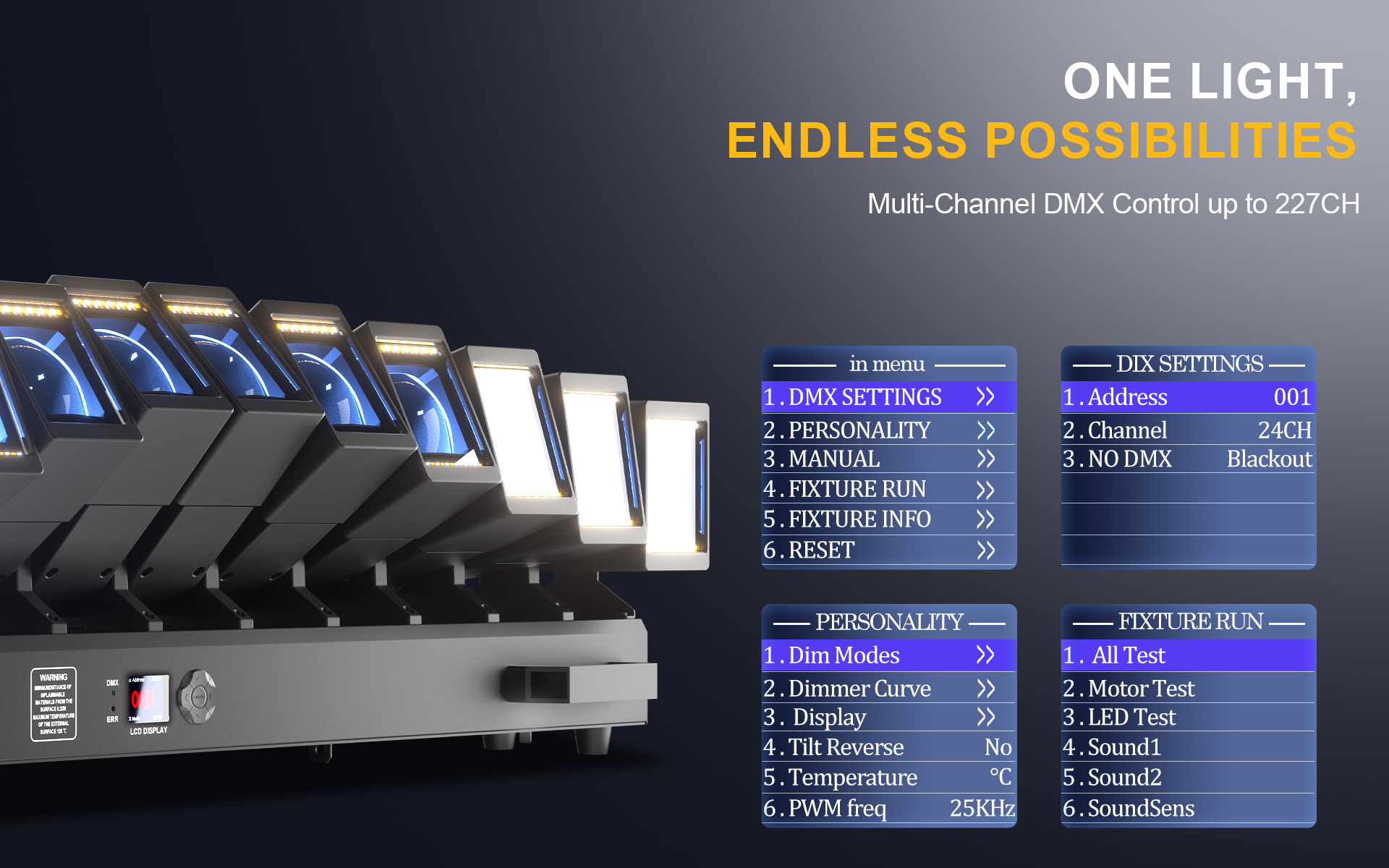

One Light, Endless Possibilities
Multi-Channel DMX Control up to 227CH

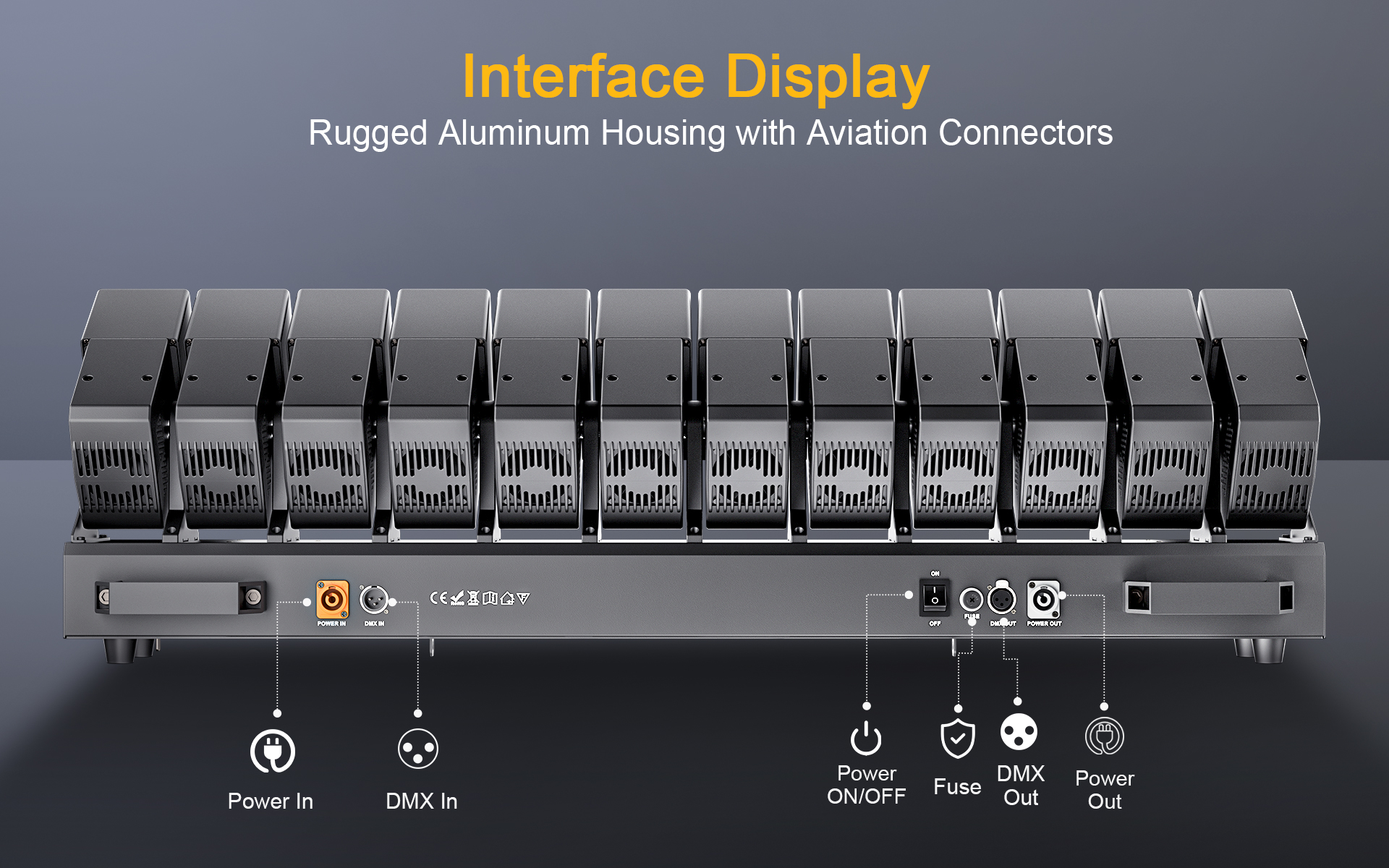

Interface Display

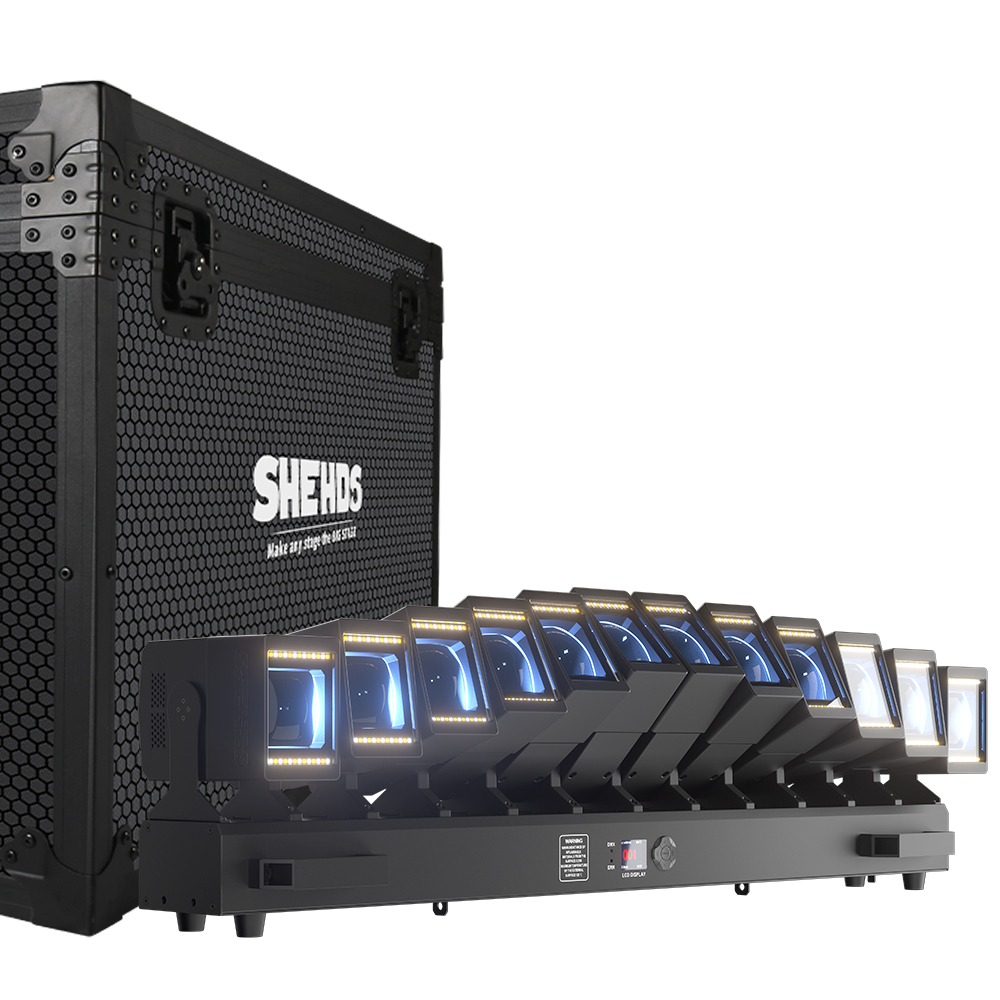

Built for the Stage. Ready for the Tour.
Rugged Aluminum Housing with Aviation Connectors

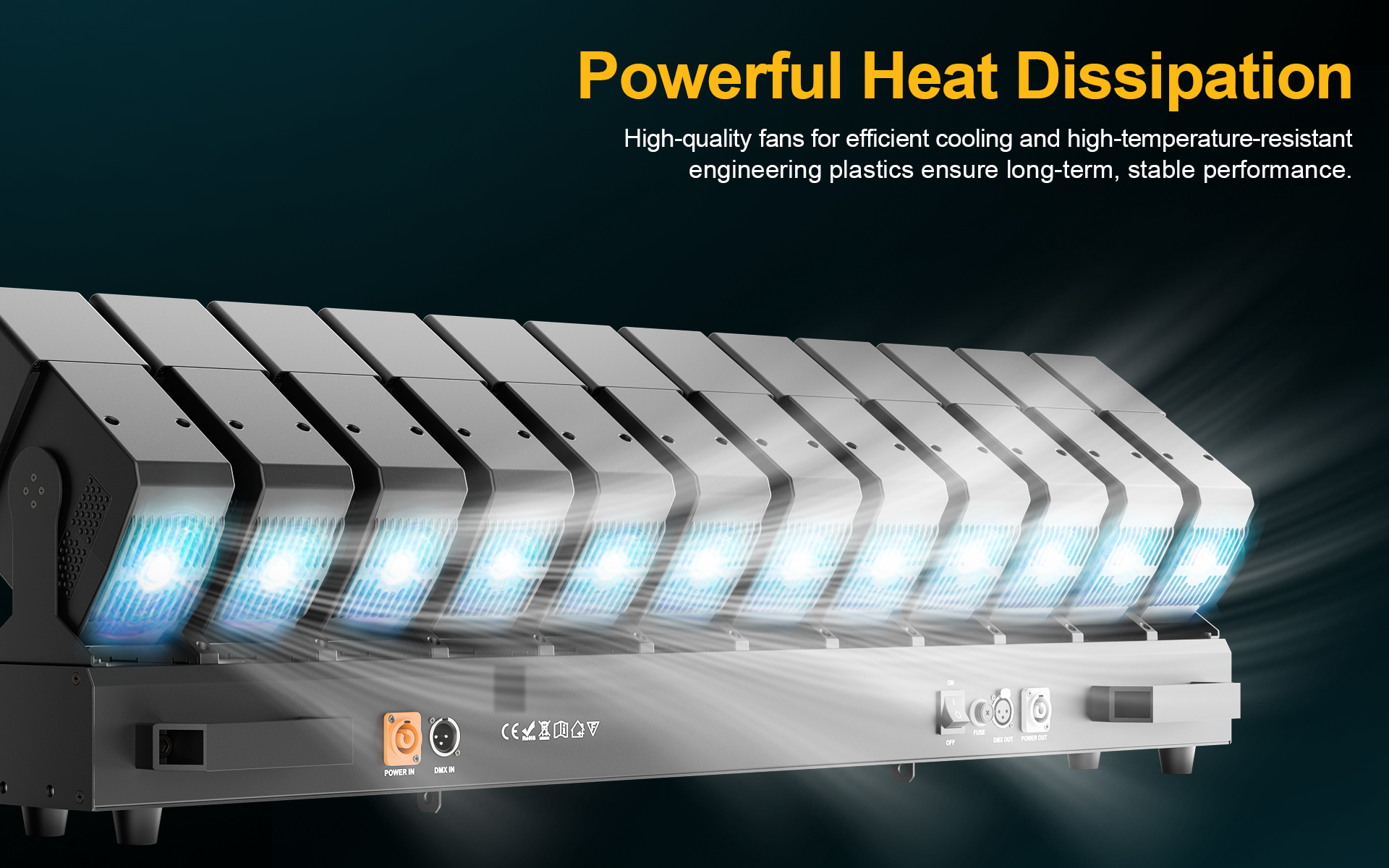

Powerful Heat Dissipation
High-quality fans for efficient cooling and high-temperature-resistant engineering plastics ensure long-term, stable performance.

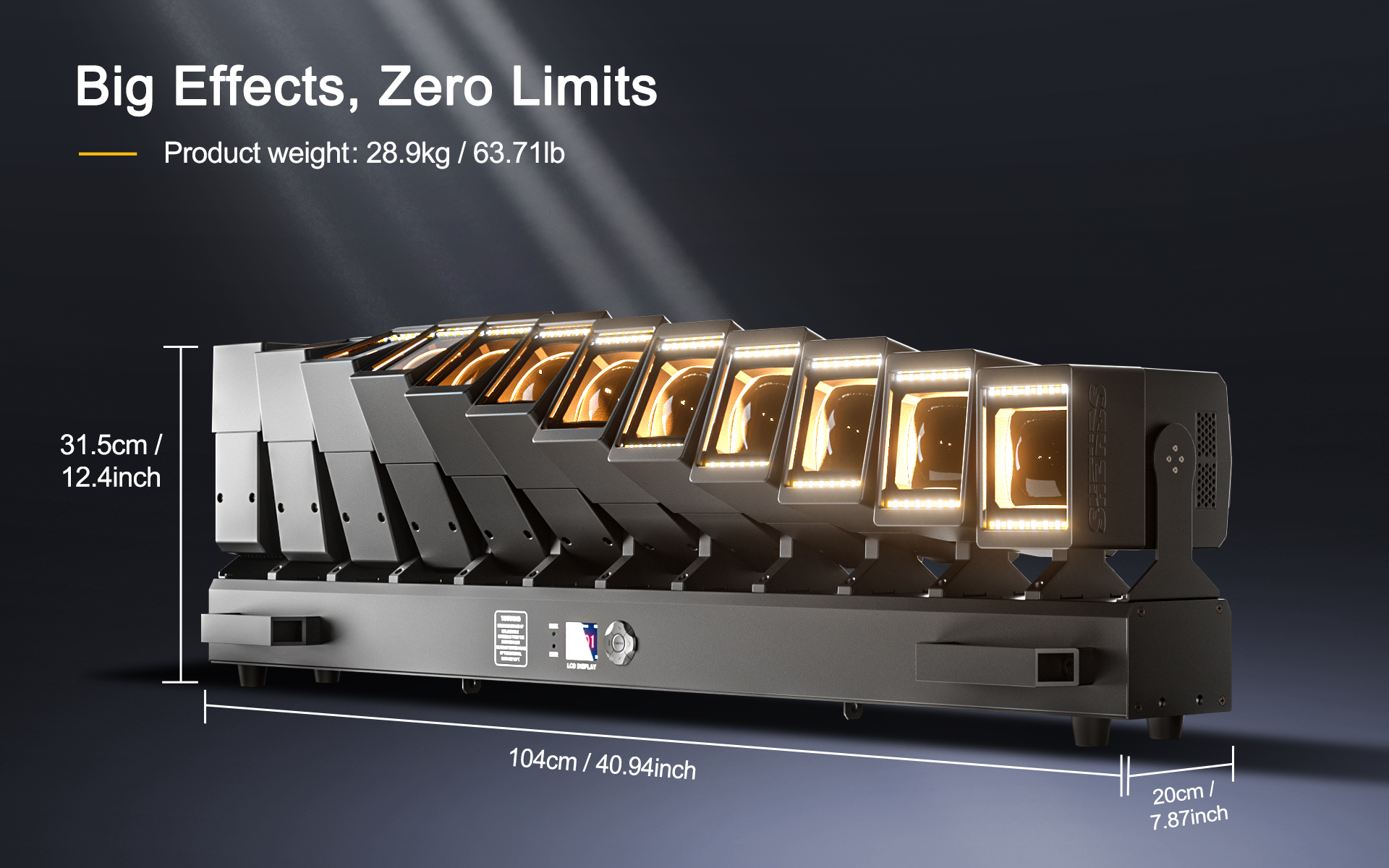

Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

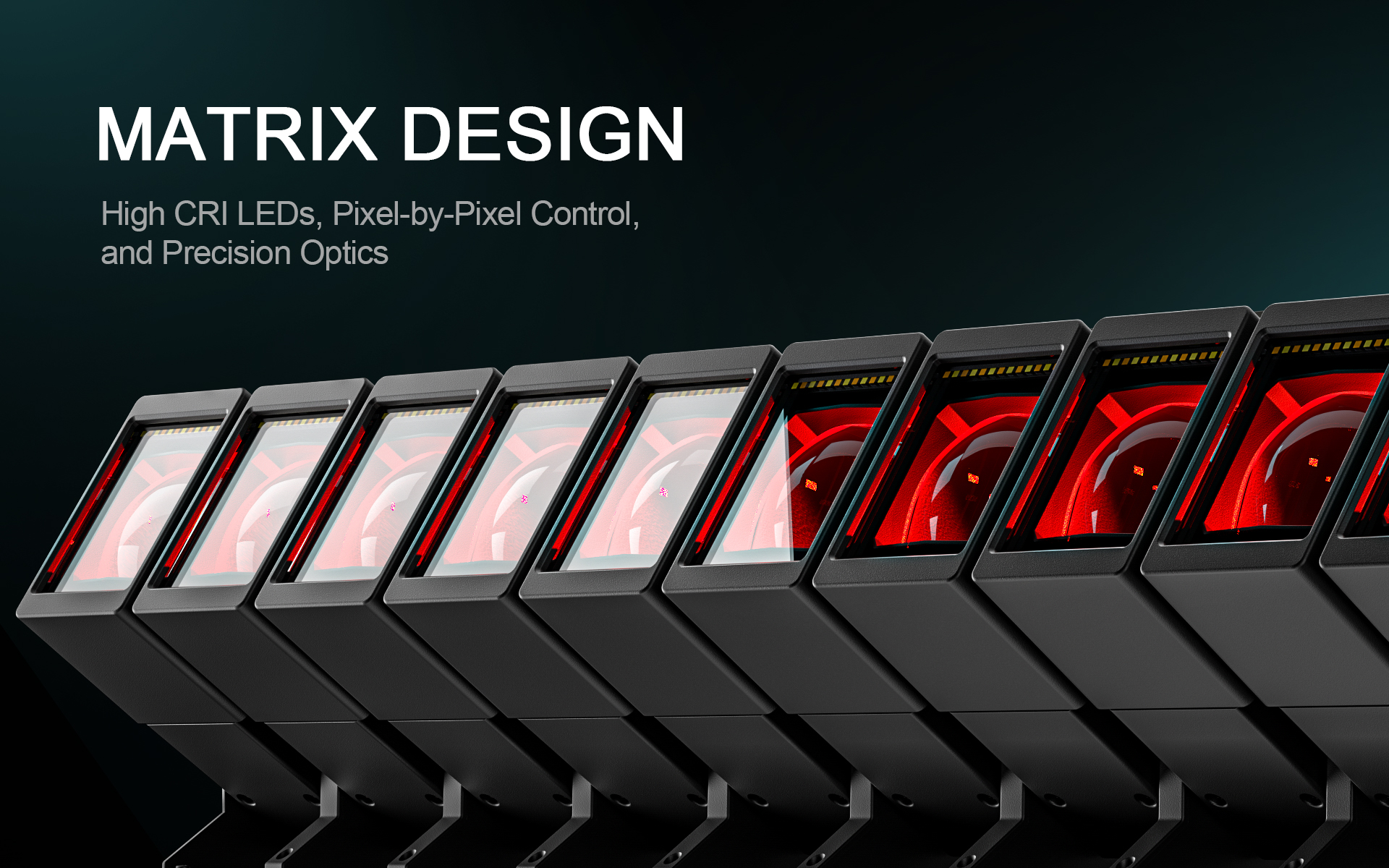

Matrix Design
High CRI LEDs, Pixel-by-Pixel Control, and Precision Optics
